Product Detail
Technical Parameter:
|
Model |

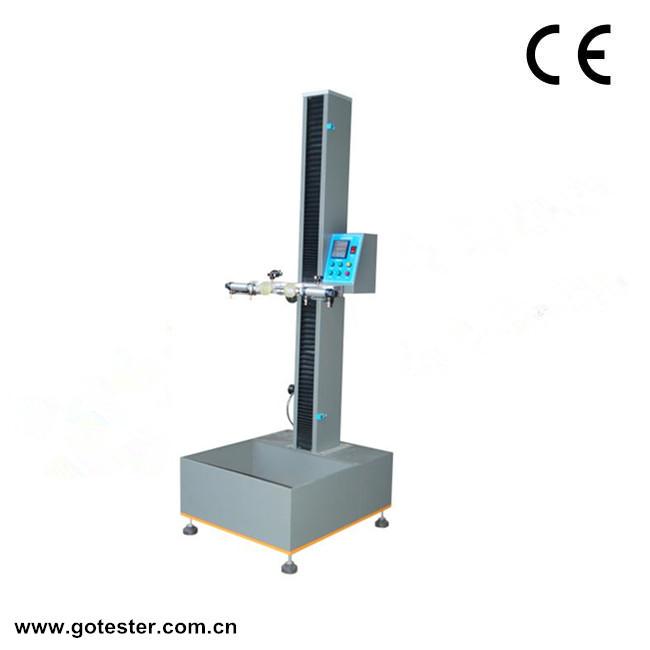

BTC-2204A Battery Drop Test Machine |
|
The maximum weight of the specimen |
2kg±100g |
|
Drop height |
400 ~ 1500mm (adjustable) |
|
Drop height scale |
accuracy 1mm |
|
Clamping method |
pneumatic fixture |
|
Drop floor media |
acrylic board, stainless steel plate (customer own) |
|
Drop mode |
free fall |
|
Floor size |
560x410mm |
|
The use of air pressure |
0.4 MPa |
|
Machine size |
700x900x1650mm |
|
Weight |
80kg |
|
Power supply |
1∮220V,3A |
Product Overview:
This machine is suitable for mobile phone (mobile phone), walkie talkie, electronic dictionary, building intercom telephone,
free CD/MD/MP3 and other small consumer electronic products and parts of the drop test; the machine adopts pneumatic
structure, will be placed in the test fixture (adjustable) to press down key drop, cylinder release the specimen will be free
fall test, drop height can be adjusted up or down, the height of the specimen table we can see that the drop height, the key
element of reliable performance, many fall to the ground are available.
Standard:
GB/T 31485-2015,GB/T 31241-2014,UN38.3,IEC62133,QC/T743-201X,GB/T 8897.4-2008
