Product Detail
Technical Parameter:
|
Model |

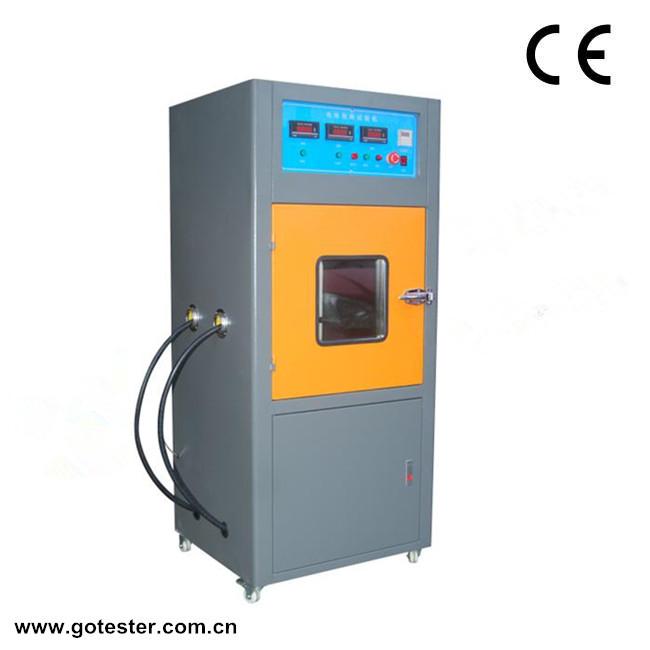

BTC-2203A Battery Short-circuit Testing Chamber (Normal Temperature Type) |
|
Working voltage |
AC 220V 50Hz-60Hz |
|
The impact of voltage |
AC s 1kv/1.2-50 (peak) 1min |
|
Test voltage |
0-100V |
|
DC response time |
less than or equal to 5 mus |
|
Maximum short-circuit current |
500A, 1000A, 2 specifications |
|
Resistance device |
less than 5m. |
|
Action time |
pick-up time / release time more than 30ms |
|
The action characteristics of cold pull in voltage |
more than 66%Us, the cold can release voltage 30%Us, less than 5%Us |
|
Inner box size |
500x500x500mm (length x width x high, can be customized) |
|
Weight |
about 80Kg |
|
Power supply |
AC220V, 50Hz/60Hz |
Product Overview:
This machine is used to test whether the battery will appear explosive fire resistance short circuit phenomenon in certain
circumstances, at the same time through the relevant instrument shows that the maximum short-circuit current.
Standard:
GB/T 31485-2015,GB/T 31241-2014,UN38.3,IEC62133,QC/T743-201X,GB/T 8897.4-2008
