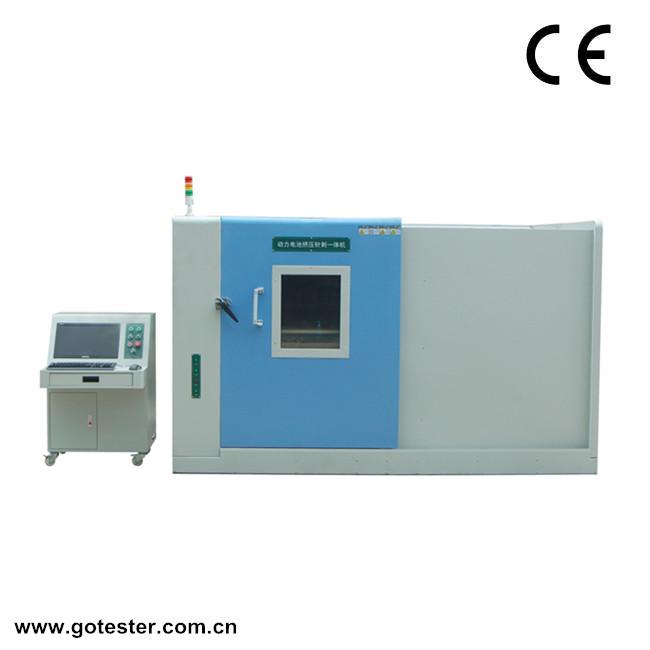

BTC-2202B Power Battery Extrusion Testing Chamber

Product Detail

Technical Parameter:

Model	BTC-2202B Power Battery Extrusion Testing Chamber
Drive Mode	hydraulic drive
Pressure value	50 ~ 1000KN
Test space	700x700x700mm (L x W x H, customized)
Extrusion stroke	750mm (customized according to battery size)
Extrusion speed	5mm/s
Unit conversions	KGF, LBF, N, kN, KPa, MPa
Measuring accuracy	+ 1%
The pressure holding time	0 ~ 9999s can be arbitrarily set
The signal transmission mode	RS 232 serial port or USB port;
Extrusion head requirements	Monomer battery extrusion head: radius of 75mm half cylinder, length is greater than the size of the extruded battery;
The battery module extrusion plate	half cylinder radius 75mm, length is larger than the size of the battery being squeezed,but no more than 1m;
Box material	inner box Stainless steel, outer box cold rolled steel plate spray treatment
Features	the rear side of the box is designed with an air outlet, and the box is equipped with an illuminating lamp
Shape size	1600x1470x1240mm (length x width x height)
Weight	about 2.3T
Power supply	3 Phase 380V 50HZ

Product Overview:

The simulation of various types of battery, for the testing machine module, battery pack, battery system in use, the battery

being squeezed, artificial different situation may arise in the battery when subjected to extrusion, safety performance testing

and evaluation of battery products. The test equipment in the event of a fire or explosion when the battery should be absolute

to ensure personal safety and not harm test environment.

Standard:

GB 31241-2014,GB/T 8897.4-2008,YD/T 2344.1-2011,GB/T 21966-2008,MT/T 1051-2007,YD 1268-2003,GB/T 19521.11-2005,

YDB 032-2009,UL 1642,UL 2054,IEC 62281,IEC 60086
