Product Detail
Technical Parameter:
|
Model |

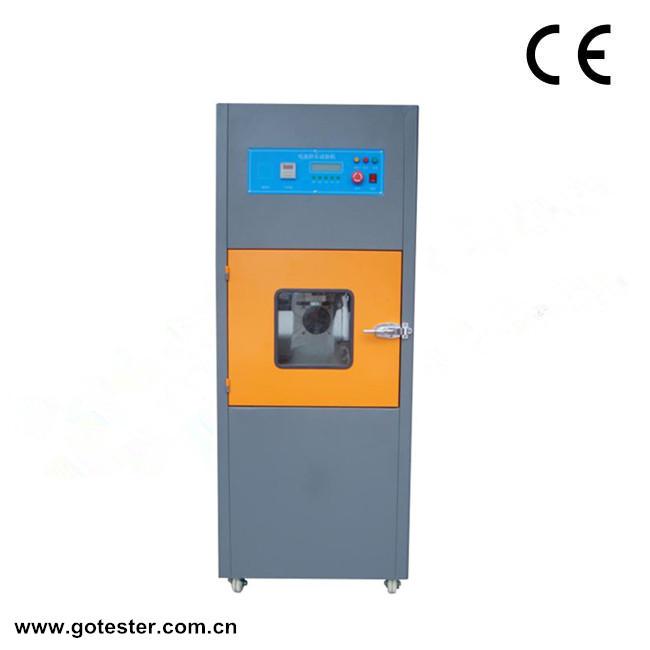

BTC-2202A Battery Extrusion Testing Chamber |
|
Drive Mode |
hydraulic drive |
|
The force value range |
1 ~ 20kN |
|
Force measuring accuracy |
0.1N |
|
Unit conversion |
Kg,N,LB |
|
Extrusion stroke |
300mm |
|
The force value display |
LCD display |
|
Battery extrusion head |
standard extrusion head area≥20cm2 |
|
Extrusion degree |
extrusion pressure reached 13±0.2kN, keeping 1min. |
|
Material |
stainless steel inner box, outside the box of cold rolled steel plate spray treatment
|
|
Features |
the rear side of the box is designed with an air outlet, and the box is equipped with an illuminating lamp |
|
Test space |
520x450x460mm (Width x Death x Height) |
|
Shape size |
700x800x1830mm (Length x Width x Height) |
|
Weight |
about 220kg |
|
Power |
AC380V, 50HZ |
Product Overview:
Battery Extrusion Testing Chamber is suitable for the simulation of various types of batteries in use, transportation,
storage or disposal of household waste, batteries were crushed, battery explosion fire is qualified.
Standard:
GB 31241-2014,GB/T 8897.4-2008,YD/T 2344.1-2011,GB/T 21966-2008,MT/T 1051-2007,
YD 1268-2003,GB/T 19521.11-2005,YDB 032-2009,UL 1642,UL 2054,IEC 62281,IEC 60086
