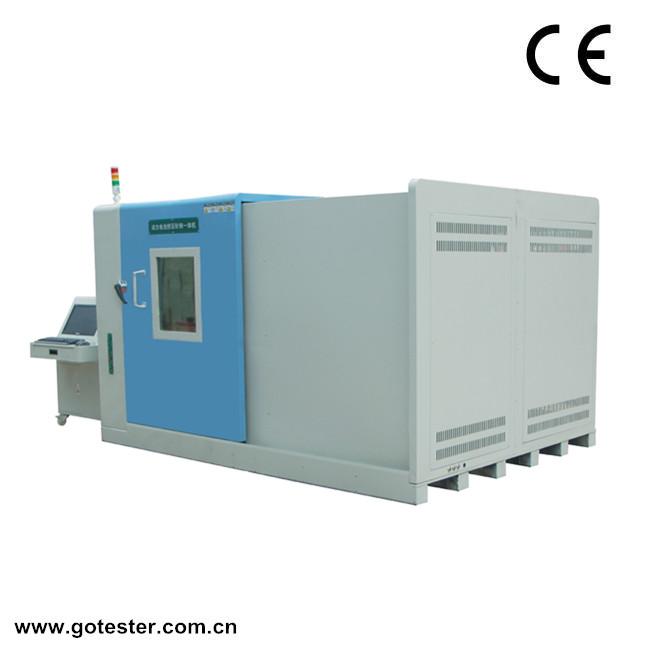

BTC-2201B Power Battery Prick Testing Chamber

Product Detail

Technical Parameter:

Model	BTC-2201B Power Battery Prick Testing Chamber
Measuring accuracy	50 ~ 100KN (can be customized)
Acupuncture stroke	± 1%
Steel needle	ф6～ф10mm high temperature resistant steel needle, the length of 100mm
Acupuncture stroke	400mm (according to the size of the custom battery)
Acupuncture speed	10 ~ 40mm/s (can be set)
Unit conversions	KGF, LBF, N, kN, KPa, MPa
Control modes	computer control
Drive mode	hydraulic drive
Test the product size	500x500x500mm (can be customized)
Box material	inner box Stainless steel, outer box cold rolled steel plate spray treatment
Features	the rear side of the box is designed with an air outlet, and the box is equipped with an illuminating lamp
Weight	About 750KG
Power supply	3 Phase 380V 50HZ

Product Overview:

BTC-2201B Power Battery Prick Testing Chamber is suitable for simulating all kinds of batteries in the transport, storage

process by acupuncture conditions. The test should be performed at 20℃±5℃ under ambient temperature, the battery

(thermocouple thermocouple contacts are fixed on the battery surface) in the hood, with a diameter of 2-8mm ~ 10mm/s

with corrosion-resistant stainless steel needle the speed of the 40mm/s maximum surface pierce the battery center position,

any time and observe the test results, the battery does not explode, no fire is qualified.

Standard:

GB 31241-2014,GB/T 8897.4-2008,YD/T 2344.1-2011,GB/T 21966-2008,MT/T 1051-2007,YD 1268-2003,

GB/T 19521.11-2005,YDB 032-2009,UL 1642,UL 2054,IEC 62281,IEC 60086
