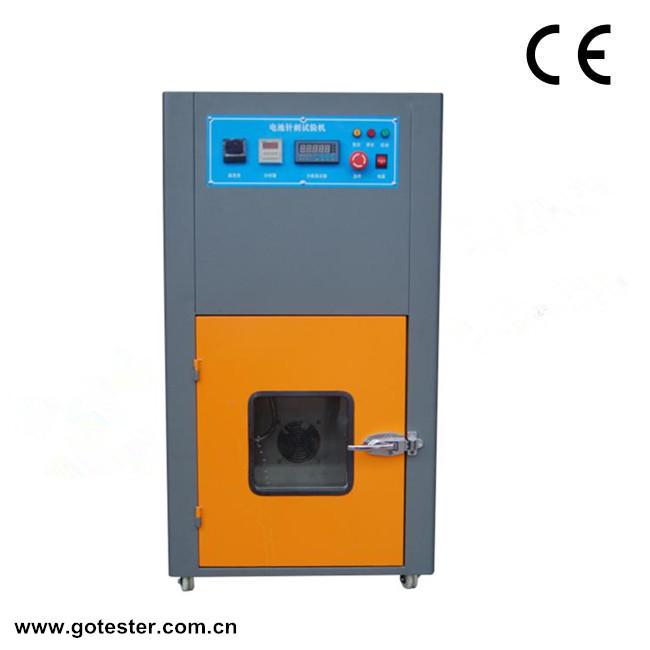

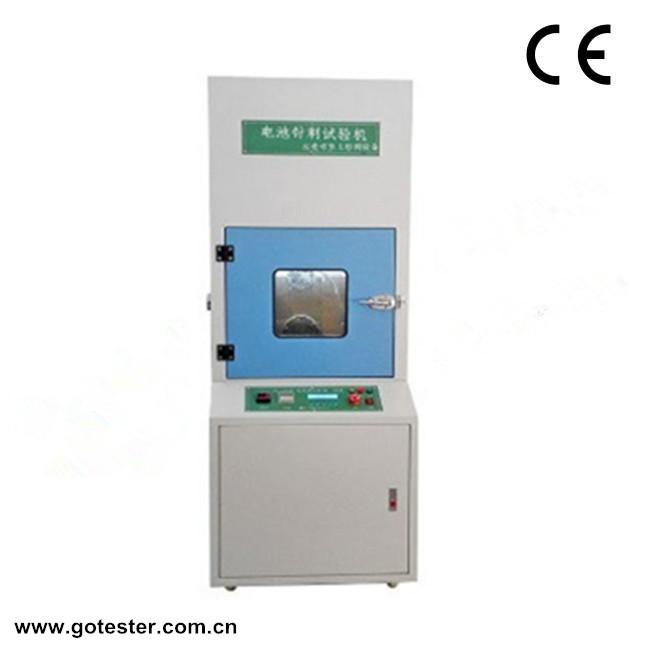

BTC-2201A Battery Acupuncture Testing Chamber

Product Detail

Technical Parameter:

Model	BTC-2201A Battery Acupuncture Testing Chamber
Steel needle	φ5mm～φ8mm high temperature resistant steel needle, the length of 100mm
Acupuncture stroke	200mm (customized)
Clip battery distance	200mm
Unit conversion	Kg,N,LB
Acupuncture speed	10 ~ 40mm/s
Acupuncture force value	1 ~ 300Kg
Force value display	LCD display or touch screen display
Force measuring accuracy	+ 1%
Drive mode	cylinder drive
Box material	inner box Stainless steel, outer box cold rolled steel plate spray treatment
Features	the rear side of the box is designed with an air outlet, and the box is equipped with an illuminating lamp
Weight	About 100kg
Power supply	1 phase, 220V, 13, 50HZ

Product Overview:

BTC-2201A Battery Acupuncture Testing Chamber is suitable for simulating all kinds of batteries in the transport, storage

process by acupuncture conditions. The test should be performed at 20℃±5℃ under ambient temperature, the battery

(thermocouple thermocouple contacts are fixed on the battery surface) in the hood, with a diameter of 2-8mm ~ 10mm/s

with corrosion-resistant stainless steel needle the speed of the 40mm/s maximum surface pierce the battery center position,

any time and observe the test results, the battery does not explode, no fire is qualified.

Standard:

GB 31241-2014,GB/T 8897.4-2008,YD/T 2344.1-2011,GB/T 21966-2008,MT/T 1051-2007,YD 1268-2003,GB/T 19521.11-2005,

YDB 032-2009,UL 1642,UL 2054,IEC 62281,IEC 60086
