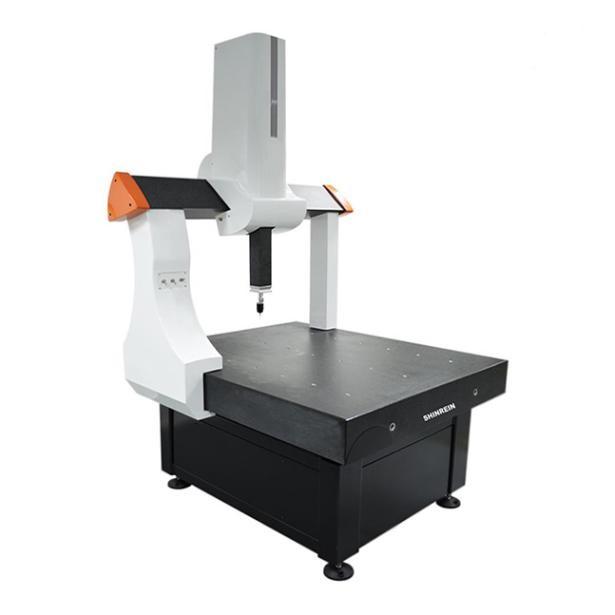

VMM-1507 Manual Coordinate Measuring Machine (Bridge type)

Technical Parameter:

Main feature:

1. All imported core components

2. The three-axis high precision natural granite

3. The three-axis high precision self-cleaning air bearing, more stable movement, rail will never

be subject to wear and tear

4. The three axes are made goods into the precision grating

5. The use of precision-axis 50 ° 60 ° 70 ° triangular beams patented technology, lower center

of gravity compared to the rectangular beam, rigid quality more reliable than the best exercise.

6.Y-axis integral dovetail rail, reducing the weight of the machine at the same time eliminating

the pendulum motion, ensure the accuracy and stability.

7. The ergonomic design

Environmental conditions:

Measuring Machine room temperature requirements: Temperature measuring machine room: 18-22 ℃

The maximum temperature gradient around the machine environment: 1 ℃ / h 2 ℃ / 24h, 1 ℃ / m

Gas supply system: Minimum supply pressure: 0.5Mpa Air consumption: 120L / min

Power supply system: Voltage: 220V ± 10%, the maximum power consumption: 2000W, Current: 15A

Electrical equipment requires reliable grounding: Grounding resistance less than 4 ohms

CMM software

Pipeline module: professional pipeline for data analysis

CAD drawings custom pipeline has the following advantages:

1. Paint saving time

2. realistic illustration pipeline, and the pipeline to facilitate intuitive and accurate comparison of the data

3. Direct measurement, intuitive graphics, vivid, shorten the measurement time

4. The measuring points can be generated based on theoretical data, convenient

Support curves and surfaces made open type

Point cloud support functions, point cloud import / export

Support 21 error compensation / Temperature compensation / real-time temperature compensation

Supports CAD import / export, and seamless CAD

CAD elements automatically take knowledge, CAD-based fast programming, real-time comparison

Laser scanning module: high precision for reverse engineering

Reverse engineering studies have been increasingly visible laser scanning module workpiece speed,

high efficiency, high-precision measurement, fast

Acquisition coordinate points, provide data for reverse engineering.

Laser scanning measuring object non-contact measurement, no damage to the surface of the

soft texture or precious objects measuring more than advantages.

Adapted to detect a workpiece without CAD

DMIS5.0 Programming

Graphical display of the measured element, the machine model, the probe model

Graphical display of the entire process of detection, detection path Preview / real-time simulation

Graphical output report

Create a complete coordinate system, structure, form and position tolerances computing

3D module: comparison of the data for high-precision

1, generating 3D graphics pipeline based on the theory of intelligent data.

2, built pipeline coordinate the establishment of methods to facilitate the completion of

constructing the pipeline coordinate system.

3, the definition of a variety of channels, the user can complete the pipeline in accordance

with customary definition.

4, convenient and efficient completion of the measurement pipe, greatly improve the

measurement efficiency.

5, a complete data and graphical output reports, the measurement data at a glance.
