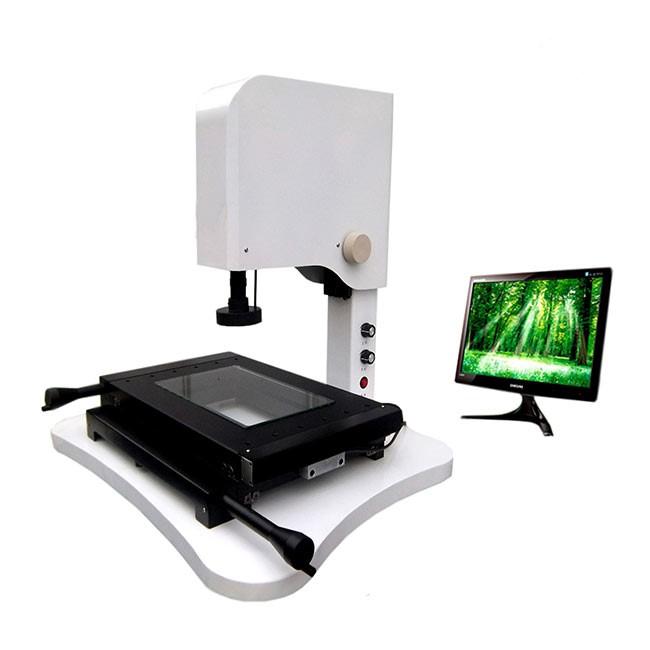

VMM-1505B 2D Video Coordinate Measuring Machine

Technical Parameter:

Performance configuration:

There are X, Y axis with 360 ° rotation T station

With a 1: 6.3 ratio of the optical zoom with continuous zoom optical system

Just having a projection imaging mode automatically scan data collection

Using the light, transmitted light designed with SONY CCD chip

Consumers have the imaging characteristics of the curvature of field and distortion elimination

18X-120X has an electronic zoom capabilities, with machine vision, automatic edge extraction,

automatic measurement mapping, measuring software for a variety of image measurement and

processing, support multiple formats, images can be stored, printed, edit, send, and so on.

Function Description:

Element measurement: Measuring points, lines, circles, arcs, angles, oval, rectangle measuring a

predetermined number of points, automatic identification points, lines, circles, arcs.

Element structure: Center construction, the intersection of structure, the midpoint structure,

line structure, round structure, angle configuration.

Preset elements: points, lines, circles, arcs. Coordinate translation, straighten the workpiece.

Straighten any axis coordinate system reset.

Graphics: Graphics zoom, graphics narrowing, graphics pan, graphics selected, select the circle,

delete the graphic, graphic print. Zoom settings, set the image gray, saturation, contrast, save,

images in BMP format.

A variety of edge finder mode, the computer automatically take points, automatic identification round,

arc greatly improve mining point speed.

Image support S-Video, AV terminal, USB terminal input; image size of 640 * 480mm. Measurement

data directly into AutoCAD for statistical analysis, can draw simple Xbar-s control chart obtained

various parameters Ca. Multilingual interface switching.

Measuring and aiming system:

Camera: SONY color 1/3 "CCD camera bifocal lens magnification: 0.7-4.5X

Working distance: 75mm Field of view: 14-2.2mm

TV Total magnification: 30-190X

Environmental conditions:

Measuring Machine room temperature requirements: Temperature measuring machine room: 18-22 ℃

The maximum temperature gradient around the machine environment: 1 ℃ / h 2 ℃ / 24h, 1 ℃ / m

Gas supply system: Minimum supply pressure: 0.5Mpa Air consumption: 120L / min

Power supply system: Voltage: 220V ± 10%, the maximum power consumption: 2000W, Current: 15A

Electrical equipment requires reliable grounding: Grounding resistance less than 4 ohms
