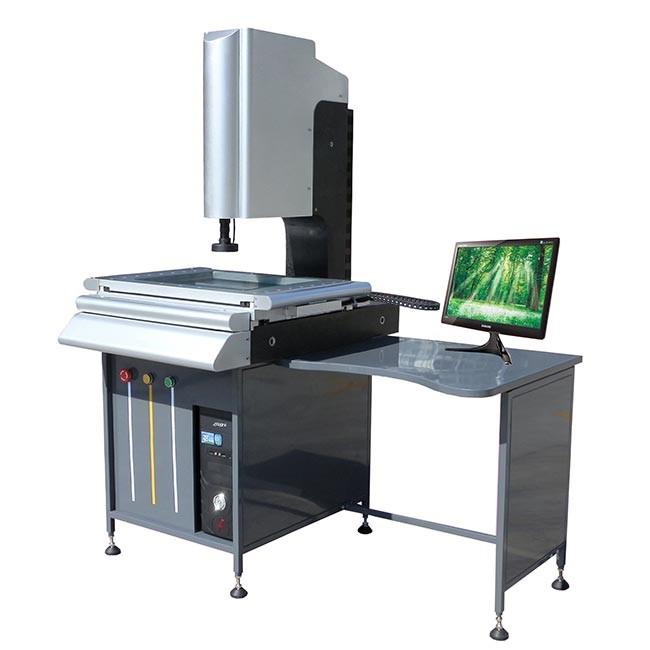

VMM-1504 Automatic Video Measuring Machine

Technical Parameter:

Product description:

Automatic Video Meauring Machine is not only high-definition CCD image-taking, combined with a multi-polar

zoom lens, but with a simple-to-use measurement software, with a point, line, circle, distance between two points,

angle measurement functions and coordinate translation function, measurement data can be output to EXCEL,

WORD, or its software to export DXF geometry measurement element of automatic boundary feature more

enhanced measurement accuracy, reduce human error, we can visualize the analysis of two-dimensional

coordinate measurement process, used in various engineering, mold measurement and reverse engineering.

Widely used in precision measuring instruments having an S terminal, hardware, mobile phone parts, tools

and the like.

Another important feature is: by measuring machine Z axis precision CCD digital camera, the measured minute

size to be enlarged, the use of advanced image information processing technology, programmable control optical

illumination technology to small or easily non-contact measurement of parts deformation, which can replace

microscope and projector, you can easily determine the boundary conditions of the measured object, and seek

the true value of the product.

Features:

1. Image manually positioning edge finder, automatic boundary tool, automatic image focus indicator, easy to

get a clear image.

2. Digital image zoom function, continuous zoom lens, you can 30X-190X continuous zoom, LED cold light source

to avoid secondary deformation of the workpiece.

3. Editor function, automatic generation of detection accuracy reporting.

4. Z-axis cross rail plus counterweight new design, the lens up and down the force balance, to ensure accuracy.

5. Unique optical design allows the CCD is substantially free from ambient light.

6. The introduction of German technology, a healthy operation, the German global error control system,

no accumulation of errors.

7. Gapless friction drive, can also be fine-tuning small move quickly and achieve accurate positioning.

8. Measurement software easy to use, students can quickly learn and master.

9. The workpiece can be any place, and can achieve multi-angle measurement, the table with open work space,

observation and measurement of the workpiece chucking are exceptionally easy to use, the projector head can

be moved to anywhere in the workspace, which greatly facilitates the measuring.
