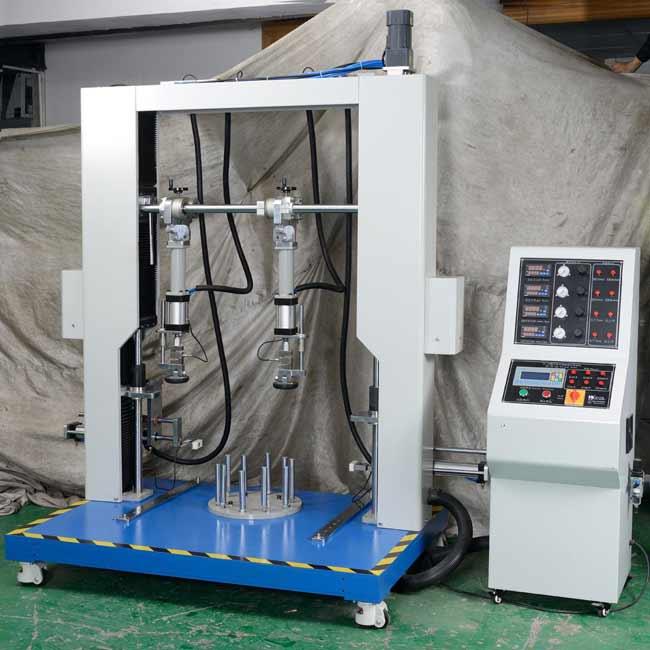

FTM-9006 Office Chair Armrest and Base Durability Testing Machine

Technical Parameter:
1, 2 groups of pneumatic actuators can be 10 degrees movable Canted or vertical fixed mounting.
Another 2 groups of horizontal mounting actuator for chair legs horizontal thrust test, which minimum
adjustment range of 20mm, up to 250mm, maximum thrust to 60kg. The left and right sides of the actuator
can work independently or simultaneously.
2,armrest height adjustment range: 550mm ~ 950mm
3 , The applied force is adjustable, force holding time is adjustable.
4,The maximum sample size width: 1000mm
5,the test rate: 10to 30times/Min
6,The front-end design of the actuator can be easily load and unload different load accessories.
7,On time force, peak force display
8,Vertical actuator maximum force output: 100kg
9,Horizontal thrust force output 70 kg max.
10,Accessories: 38 mm high block x 2 pieces ,arm loading device x 1 pair.

11,Vertical actuators can work independently or simultaneously.

Product Description:
The use of the test machine to evaluate the ability of the chair to withstand stresses that occur as a result of repetitive

loading that can be imposed on the armrest structure. Loading of this type is the result of using the armrests as a support

when getting into or out of the chair.
