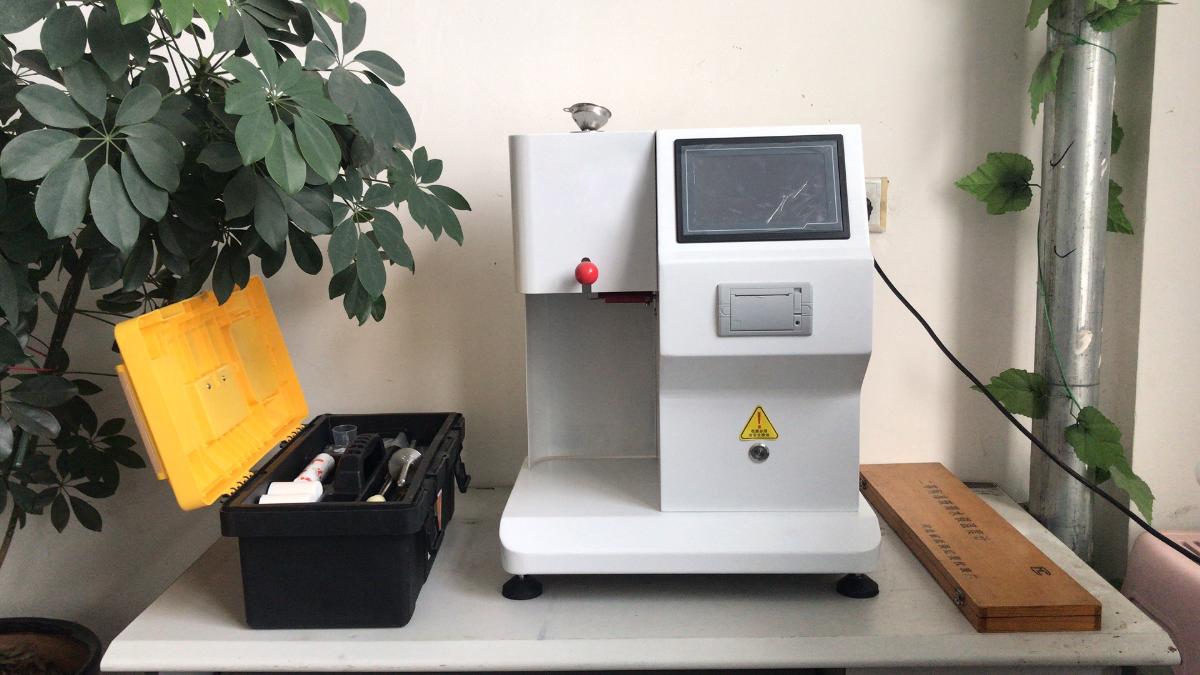

PTM-7001C USB interface MFR and MVR Melt Flow Rate Tester (touch screen)

Technical Parameter:

Introduction:

It is used to measure the melt flow rate MFR value of various plastics and resins passing through a certain temperature

and load in a viscous state through a standard die every 10 minutes. It is suitable for polycarbonates, polysulfones,

fluorine with higher melting temperatures Engineering plastics such as plastic and nylon are also suitable for polyethylene

(PE), polystyrene (PS), polypropylene (PP), ABS resin, polyoxymethylene (POM), polycarbonate (PC) resin,etc.The plastic

testing is widely used in plastic production, plastic products, petrochemical and other industries, as well as relevant

institutions, scientific research units and commodity inspection departments.

Standard:

GB / T3682-2018.1 Determination of melt mass flow rate (MFR) and melt volume flow rate (MVR) of thermoplastics

for plastics. Part 1: Standard method

GBT3682.2-2018 thermoplastic melt mass flow rate (MFR) and melt volume flow rate

ISO 1133: 2011 Determination of melt mass flow rate MFR and melt volume flow rate MVR of thermoplastics

ASTM D1238 Standard Test Method for Melt Flow Rate of Thermoplastics by Extrusion Plastometer

Feature:

1.Chinese and English color touch screen display

2.Hand-cutting material

3.Dual temperature control system for more precise temperature control and higher heating efficiency

4.Can be connected to a computer, the software can output reports, and data can also be exported via USB.

5.Dual imported sensors, more accurate temperature gradients, can be used independently, increasing service life

6.The barrel is made of imported Hastelloy nitriding treatment, and the die is made of carbon tungsten steel.

7.The insulation barrel is made of sus304 stainless steel, which will not rust for a long time at high temperature

8.Automatically calculate results and print out
