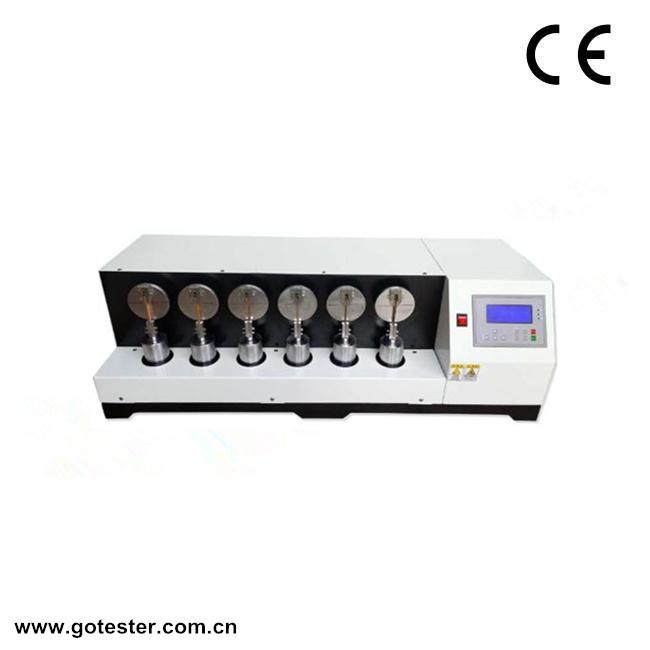

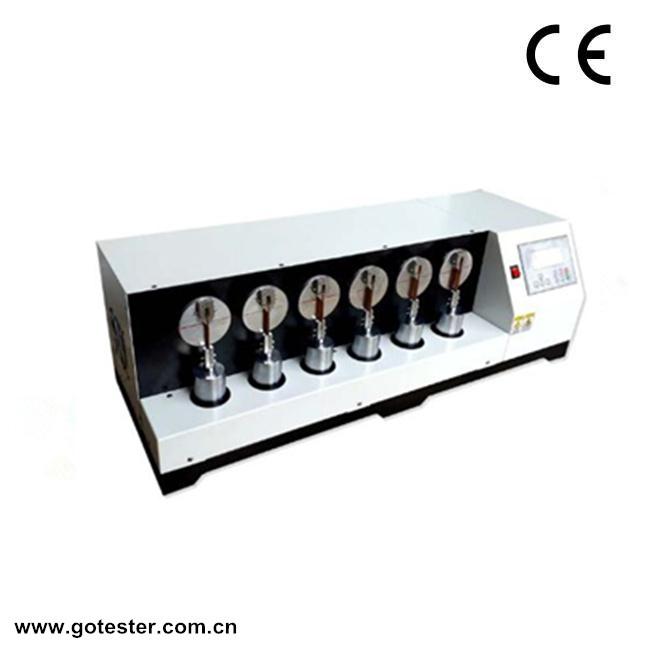

STM-6007B Fiberboard Flexing Tester

Product Detail

STM-6001 Footwear Static Anti-slip Testing Machine	Operation Video
STM-6005A EN Sole Bending Testing Machine	Operation Video
STM-6007B Fiberboard Flexing Tester	Operation Video
STM-6016A Shoes Insole Water Absorption Testing Machine	Operation Video
STM-6017 Shoes Toe Peel Testing Machine	Operation Video
RTM-3005 DIN Abrasion Testing Machine	Operation Video
LTM-5013C Rotary Vertical Crockmeter	Operation Video

Technical Parameter:

Model	STM-6007B Fiberboard Flexing Tester
Test fixture	6
Test piece	80×10mm
Reciprocating flexing angle	90°
Weights	(2 ± 0.01kg) × 6
Speed	(60 ± 10) r / min
Counting meter	LCD, 0~999999 (7 groups)
Length of the grip	Upper grip 15mm,lower grip 10mm
Motor	DC brushless motor
Volume	109 × 26 × 34cm
Weight	149kg
Power supply	1∮, AC220V, 3A

Introduction:

Fiberboard Flexing Tester is used to test the flexural quality of leather shoes, mid-sole fiberboards such as

leather shoes,casual shoes and walking shoes.During the test, the test piece was bent 90 degrees continuously

to the left and right until it broke, and the fracture resistance index of the middle plate was determined by the

number of times of the fracture, which was used as a basis for comparison and selection of the bottom plate.

Standard:

QB/T 1472, BS 5131 : 4.2, SATRA TM3. PM4. PM5. PM6. PM15. PM16 and other standards
