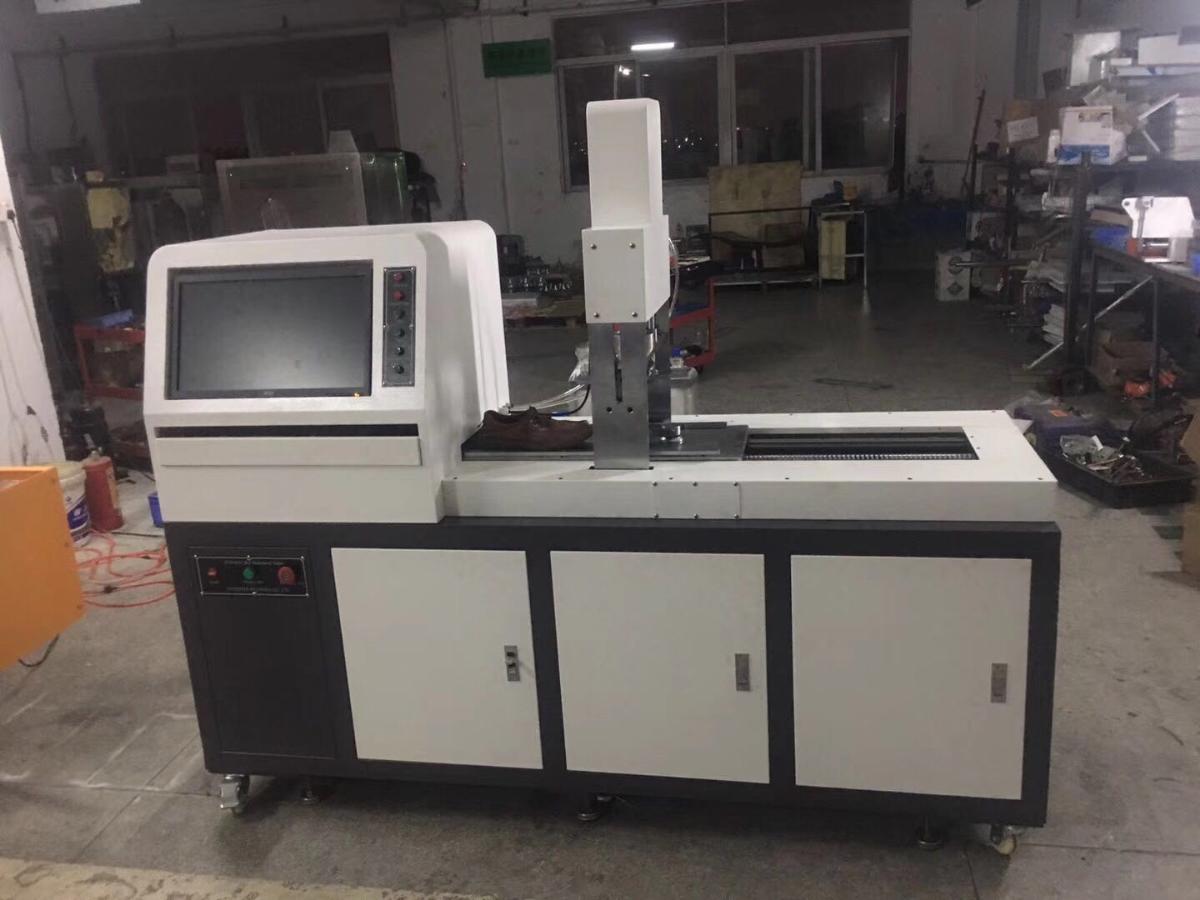

STM-6001 Footwear Static Anti-slip Testing Machine

Equipment Summary:

STM-6001 Footwear static anti-slip test machine developed based on extensive biomechanical research, it represents the conditions

encountered during walking may occur slipping. This non-slip machine consists of a specially designed control instrument and data

collection systems, for provide users with the coefficient of friction for each test sample. This is obtained through close control of the

force involved in testing,including the variable speed motor provides velocity. The controller on the instrument and its unique circuitry

designed to ensure that the testing process can maintain the proper force and velocity.

Main Functions:

STM-6001 Footwear static anti-slip testing machine used to each test machine testing standards,instrument calibration, and the floor

test interface. Other test interface also applies to this instrument, as long as the size suitable for installation in the instrument, almost

all types of test interfaces can be used 43B footwear static anti-slip test machine for testing.Its unique design makes this instrument

can be used to measure shoes and standard floor interface between the non-slip coefficient can also be used to measure anti-slip

coefficient between a variety of floor interface with standard substrate.

Applicable Industry:

Footwear with outer soles, the end of shoe heel or outside the test of the static non-slip performance.

Standards:

SATRA TM144 / EN ISO 13287 /ASTM F2913
