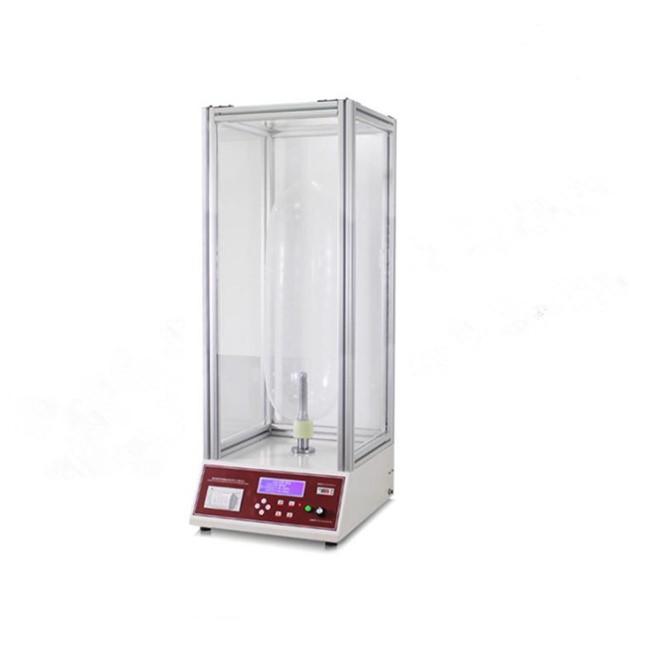

RTM-3017 Condom Burst Volume Pressure Tester

Technical Parameter:

Feature:

1.Compatible with GB7544, ASTM, ISO multiple standards

2.The host system can support connecting multiple sub-machines and testing at the same time.

3.Standard automatic air-expansion shaft clamping efficiency is high, no damage to the sample, easy to complete the test

4.Professional measurement and control software to calculate blast flow, volume and pressure data in real time

5.Positive pressure design principle, simple operation, stable and reliable performance

6.The test process is “one-click” operation, efficient and intelligent,

7.LCD display, automatic statistics, and printing

8.Test accessory support, flexible test mode, and compatible diversification

Test Principle:

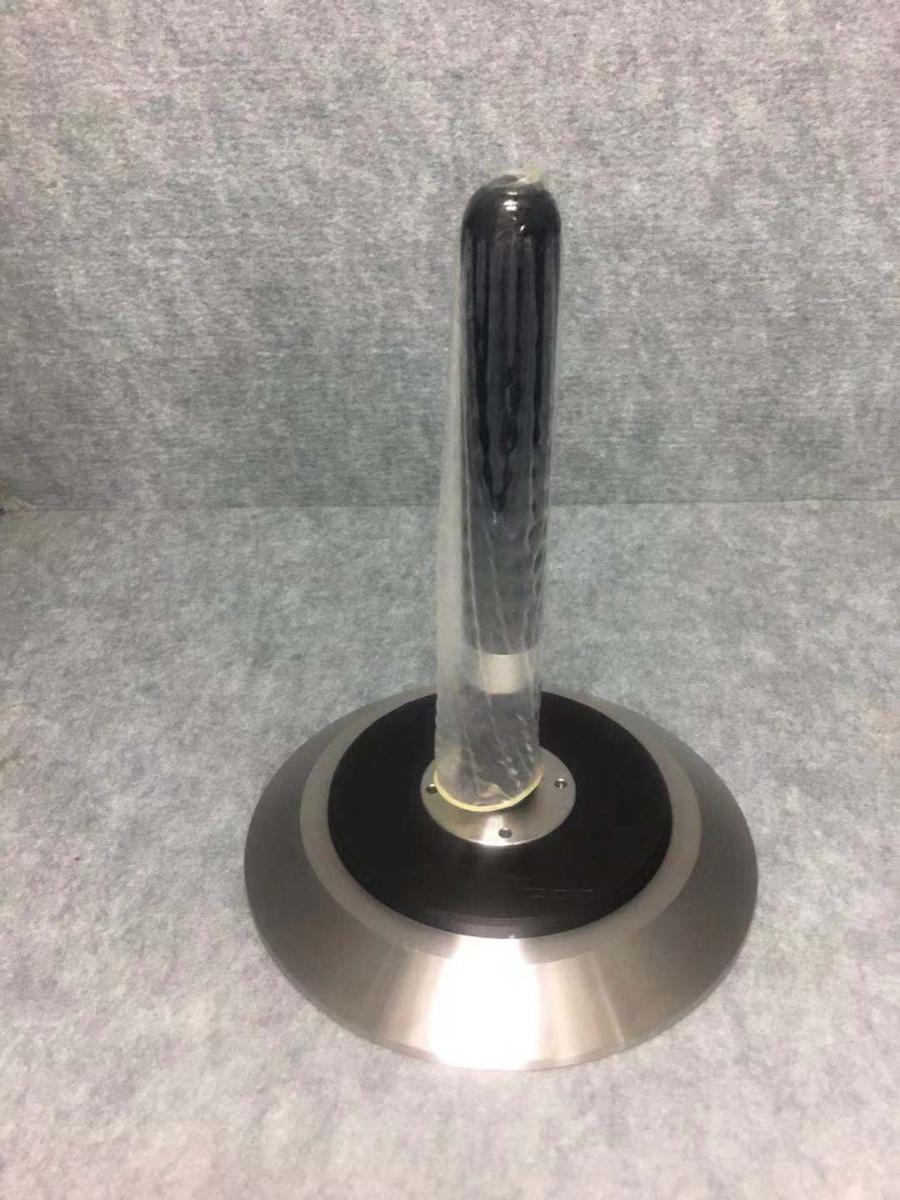

Put the condom on the air blowing rod, require the sleeve to be over the position of the inflation sleeve, hold the inflation

clamp to the height of the inflation sleeve, start the test, the instrument first inflates the inflation sleeve, and the condom

is fixed between the inflation sleeve and the clamp. Start to inflate the condom, expand the condom blast, the screen

shows the burst pressure and the volume of the blasting volume, the blasting volume is expressed in cubic decimeters,

and is reduced to 1dm3; the bursting pressure is expressed in kilopascals, rounded to 0.01 kPa, the inflation rate can be

adjusted by adjusting the knob. The air leakage can be terminated manually during the inflation process. The blast volume

and pressure are recorded as zero. If the condom does not leak, measure and record the blast volume and pressure.

Standard:

GB7544-2009,ISO23409,ASTM D6324

Application:

Condoms,rubber gloves,balloons
