Product Detail
Technical Parameter:
|
Model |

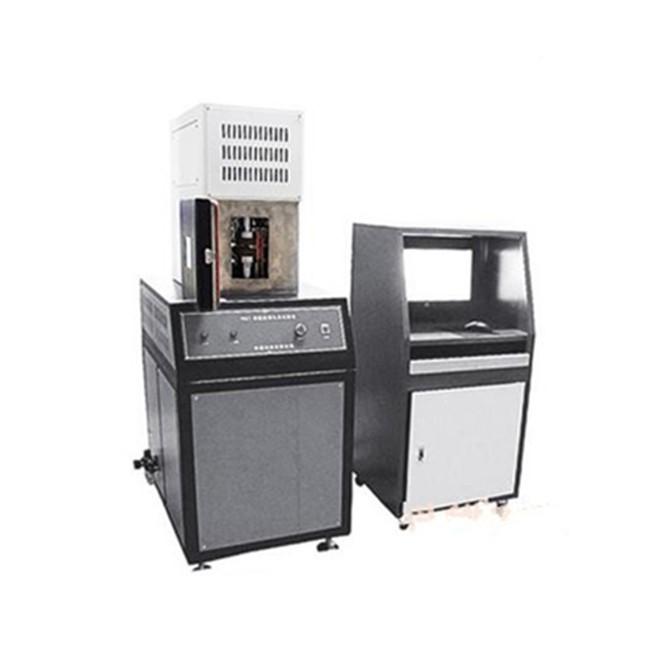

RTM-3015 Rubber Compression Heat Flexometer |
|
|
Temperature |
RT~100°C adjustable ( special can return to150°C) |
|
|
Temperature accuracy |
±1°C |
|
|
Sample size |
dia.17.8×25mm |
|
|
yard |
5.5Kg±100g (4) |
|
|
Compression stroke |
0~6.35 mm |
|
|
Test speed |
1800±20 r/min (30Hz) |
|
|
Volume (L*W*H) |
100*65*143 cm |
|
|
weight |
Host |
450 kg |
|
Control box |
90 kg |
|
|
Supply power |
1phase,220V,50 Hz / 60Hz |
|
Product Summary:

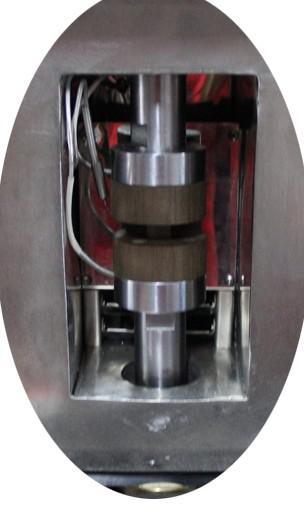

RTM-3015 Rubber Compression Heat Flexometer through an inert compression load applied to the specimen through a transmission
system with the required amplitude of the periodic high-frequency compression applied on the specimen with the test sample at room
temperature or above room temperature conditions in a certain period of time compression fatigue temperature rise and fatigue life.
For in the hardness of 30 ~ 85IRHD vulcanized rubber.
Standard:
GB/1687 HG/T 2070 ISO-4663 ASTM-D623
