Product Detail
Technical Parameter:
|
Model |

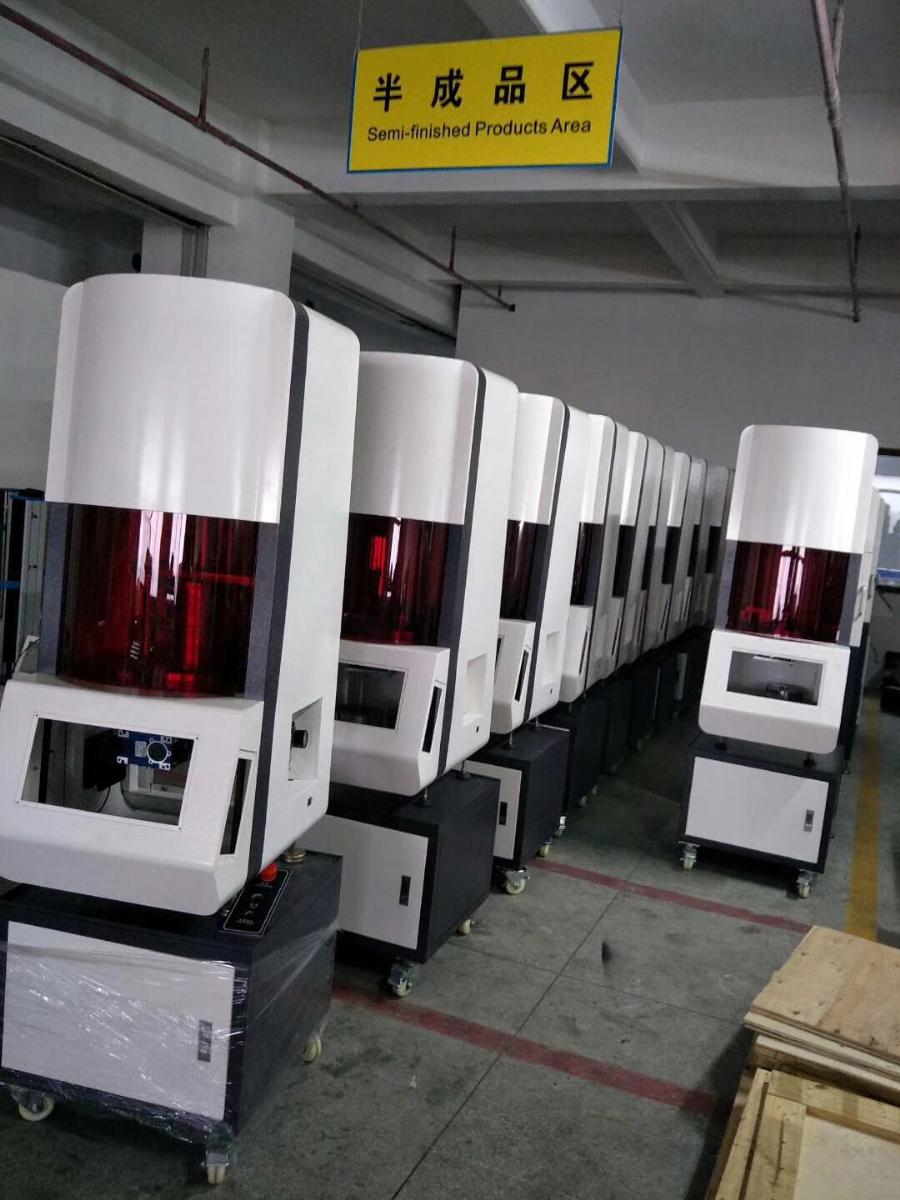

RTM-3001A Mooney Viscometer |
|
Control temperature range |
Normal temperature~200℃ |
|
Temperature display resolution |
0.01℃ (0.1 ℃ common type of imported temperature controller temperature) |
|
Temperature control accuracy |
±0.3℃ |
|
Calibration accuracy |
Mooney value ±0.5 |
|

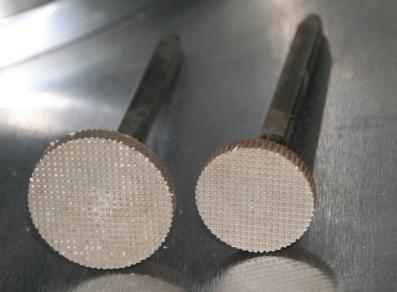

Rotor speed |
2 rotation/ min ±0.02rotation/ min |
|
Torque range |
Mooney value 0～200 |
|
Torque resolution |
Mooney value 0.1 |
|
Print content |
Date,time,temperature, Mooney scorch curve and MV,T5,T35,T3,T18,@15,@30 |
|
Power |
50HZ, ～220V±10％ |
Equipment Summary:
RTM-3001AMooney Viscometer viscosity for rubber vulcanization index determination. Sample in a certain temperature and
pressure,the rotor to a certain degree of rotation torque on the sample to a certain degree of shear stress, measure out the
rubber anti-shear torque. Is reclaimed rubber, rubber, wire and cable industry indispensable instrument.
Standards:
Line GB/T1232 "unvulcanized rubber Mooney Viscosity", GB / T 1233 "Rubber, Determination of characteristics of the initial
curing Mooney Viscometer" and ISO289, ISO667 ,ASTM D1646 and other standards.
Applicable Industry:
Applied to rubber, tires, reclaimed rubber factory.
