ETC-2010B Salt Spray Testing Chamber (Touch Screen)

Product Detail

Technical Parameter:

Model	Type A	Type B	Type C
Inside box size(cm)	60x45x40	90x60x50	120x80x50
Outside box size(cm)	107x60x118	141x88x128	190x110x140
Testing room temperature	Salt test (NSS ACSS)35℃±1℃/ Corrosion Test (CASS)50℃±1℃
Pressure barrel temperature	Salt test (NSS ACSS)47℃±1℃/ Corrosion Test (CASS)63℃±1℃
Brine temperature	35℃±1℃ 50℃±1℃
Testing room Capacity	108L	270L	480L
Brine tank capacity	15L	25L	40L
Salt concentration	The concentration of sodium chloride 5% or the 5% concentration of sodium chloride add 0.26g per liter of copper chloride (CuCl2 2H2O)
Air pressure	1.00±0.01kgf/cm2
Spray volume	1.0~2.0ml/80cm2/h (working at least 16 hours, and then take the average)
Testing room relative humidity	85% above
PH	6.5~7.2 3.0~3.2
Spray form	Programmable spray (Including continuous and intermittent spray)
Power	AC220V1Φ10A	AC220V1Φ15A	AC220V1Φ20A

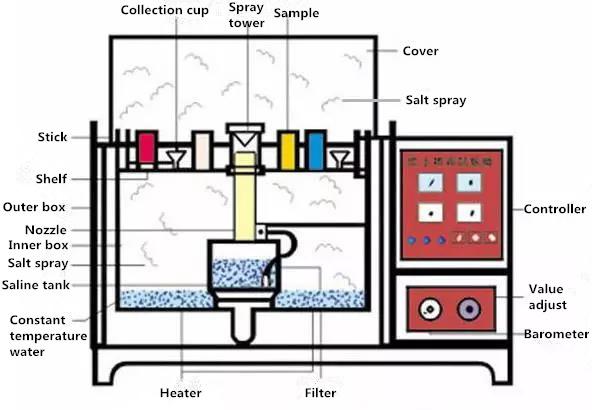

Equipment Summary:

Salt spray testing chamber used to test the corrosive resistance of products whose the surface was treated with paint,

electroplating, inorganic and organic film, anode handling, anti-rust oil,etc.

Corresponding Standard:

1.GB/T 2423.17-1993 salt spray test

2.GB/T 2423.18-2000 salt spray test

3.GB/T 10125-1997 salt spray test

4.ASTM.B117-97 salt spray test

5.JIS H8502 salt spray test

6.IEC68-2-11 salt spray test

7.IEC68-2-52 1996 salt spray test

8.GB.10587-89 salt spray test

9.CNS.4158 salt spray test

10.CNS.4159 CASS Accelerated acetic acid copper salt spray test

11.GB/T 12967.3-91 CASS Accelerated acetic acid copper salt spray test
