Product Detail
Technical Parameter:
|
Model |
UTM-1001C 500N Manual Universal Testing Machine (Touch Screen) |
|
Maximum Load |
500N |
|
Machine Dimension |
550 * 400 * 1100 mm |
|
Test Stroke |
500 mm |
|
Control Method |
Touch Screen |
|

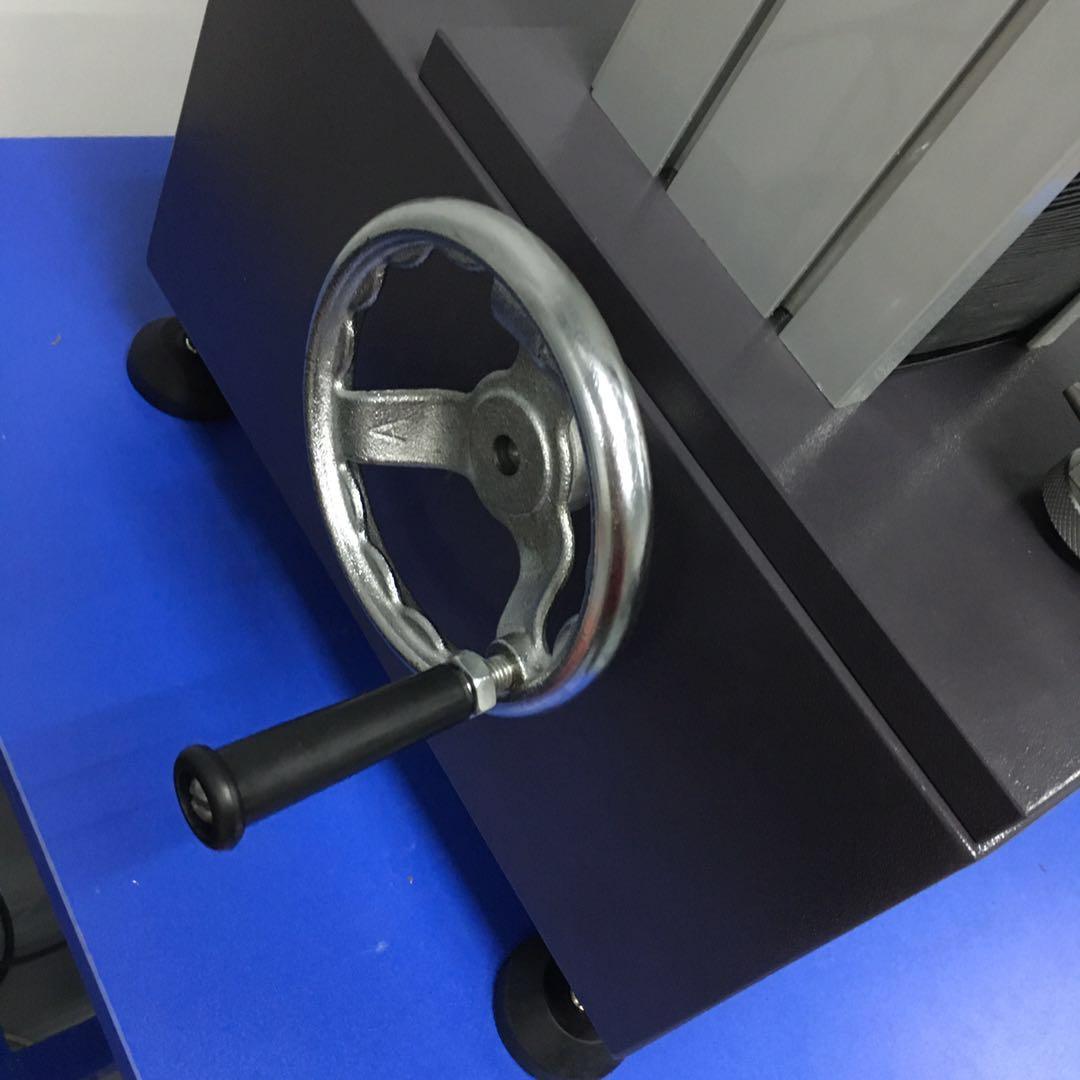

Manual Method |
Up and Down |
|
Force Resolution |
1 / 100,000, sampling frequency of 400 times / second; |
|
Force Accuracy |
Indication of ± 0.1% (20 ~ 100% FS); |
|
Force Sensor Type |
1mV / V, 2mV / V, 3mV / V, 4mV / V, 8mV / V, 9.6mV / V; |
|
Displacement Resolution |
mechanical system and optical encoder decision, generally up to 0.001mm; |
|
Test speed |
0.01mm / min ~ 500mm / min; |
|
Power Supply |
AC 220 |
Overview:

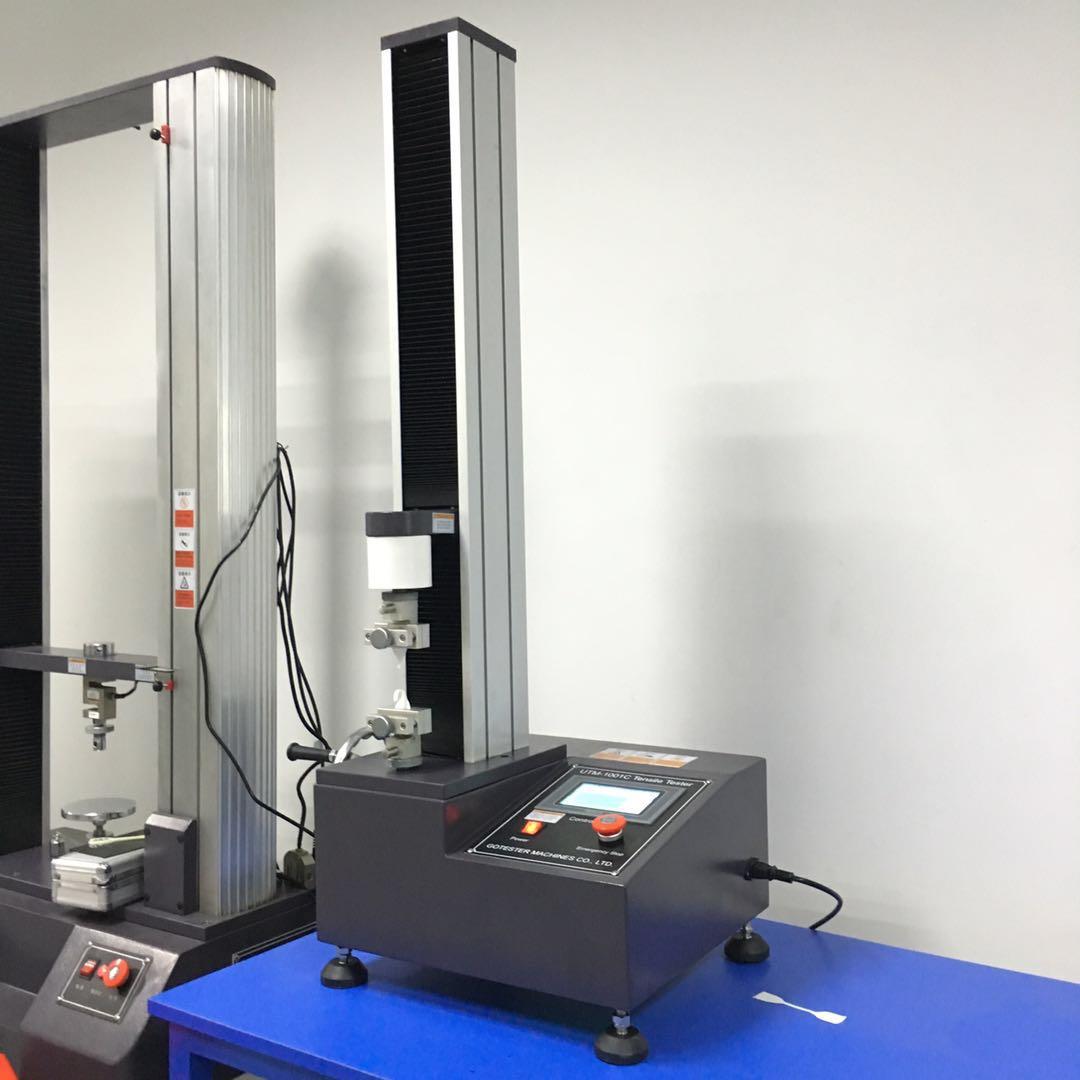

UTM-1001C 500N Manual Universal Testing Machine (Touch Screen) is suitable for stretching, compressing, bending,
shearing and stripping materials in all kinds of textile, rubber, plastic, synthetic leather, tape, adhesive product, plastic film,
composite material, （90 Degrees and 180 degrees), tear, extension of the two points by extensometer and other tests to
determine the quality of the product. Simple structure, easy to operate, can be placed on the bench for testing, the force
output by the sensor.
