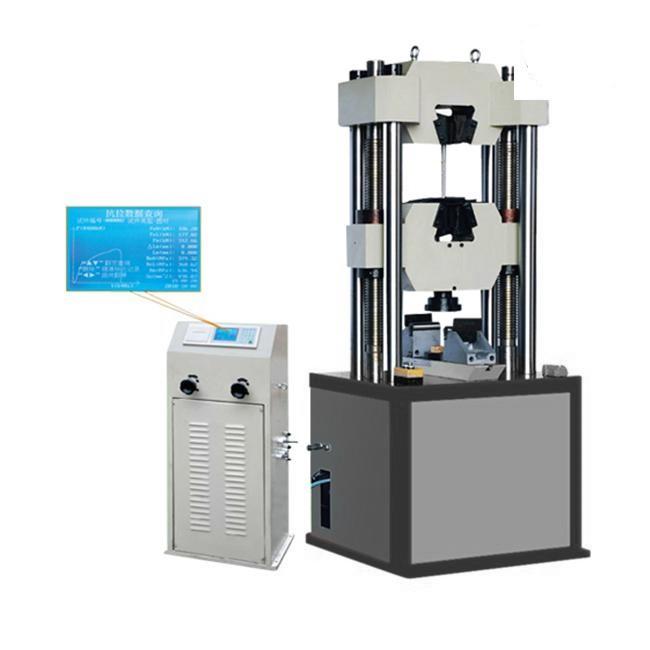

HUTM-1008A 2000KN LCD Digital Display Hydraulic Universal Testing Machine

Product Detail

Technical Parameter:

Max load	HUTM-1008A 2000KN LCD Digital Display Hydraulic Universal Testing Machine
Test force measuring range	50～2000 KN
Test Force showed the relative error	≤indicating value±1%
Test Force Resolution	0.01kN
Max tensile test space	750 mm
Max compression space	380 mm
Piston stroke	150 mm
Diameter of round specimen clamp jaw	Φ13-Φ40 mm
Thickness of flat specimen clamping jaws	0-15 mm
Maximum clamping width of the flat specimen	75 mm
Platen size	φ160mm
The maximum distance between two points bending test	450 mm
Bending branch roll width	140 mm
Bending branch roll diameter	Φ40 mm
Piston move maximum speed	50 mm/min
Clamping method	Hydraulic clamping
Host overall dimension	900×710×2200 mm
Outside dimensions	1000×700×1400 mm

Product Description:

HUTM-1008A 2000KN LCD Digital Display Hydraulic Universal Testing Machine Used to a variety of metal materials,

tensile, compression, bending, shearing accompanied by increased shear test can be done, can be used as plastic,

concrete, cement and other non-metallic materials, compression tests, with simple accessories to complete the chain

tape ,wire, welding rod, tile's wide range of performance tests and components.This machine adopt under the fuel

tank-mounted machine, low profile, light weight, especially for the engineering construction sector.

Host:

Adopt oil cylinder under mounted type host, stretching space is at the top of host, compression test space is between

the at the work table and the crossbar .

Transmission System:

Down beam go up and down by the use of motor reducer, chain drive mechanism, vice screw drive, to achieve tensile,

compression of space to adjust.

Hydraulic System:

The oil tank is sucked through the filter screen and be inhaled pump oil ,through the petroleum pipeline of oil pump

transport to oil valve,When the hand wheel to send off the oil, due to the role of oil will push the piston, the oil from

the return pipe to tank, when the hand wheel to open get the oil, then the working fluid into the fuel tank through the

tubing, pressure tubing through and through oil return valve to tank.

Control System:

Electronic force measurement, liquid crystal display test force - time curve, test power, peak test power, has obvious

characteristics of the material yield strength yield the experimental data easy and intuitive;

Through digital button input sample numbers, cross-sectional area, can be directly measured the material tensile

strength,yield strength and other mechanical properties; can query the experimental results, print (with micro-printer)

Through digital button input sample numbers, cross-sectional area, can be directly measured the material tensile

strength, yield strength and other mechanical properties; can query the experimental results, print (with micro-printer).

Safety Protection Device:

When the test force more than 3% of the maximum test force, the overload protection, oil pump motor shut down.

When the piston rises to the upper limit position, stroke protection, pump motor shut down.

Fixture:

Whole set fixtures include:stretch fixture,compression fixture,bending fixture.
