Technical Parameters:
|
Model |
UTM-1004A 20KN Universal Testing Machine (touch screen) |
|
Max load |
5KN, 10KN, 20KN |
|
Accurate grade |
1 % /0.5 % |
|
Effective measuring range |
0.2%~100%(1grade)/0.4%~100%(0.5 grade) |
|
Measuring accuracy |
Display the value ±1%/Display the value±0.5% |
|
Tester resolution |
Max load 1/200000, regardless of inside and outside, constant the resolution |
|
Load sensor |
Basic configuration：sensor(max load): one Extended configuration: can add more sensors |
|
Effective testing width |
390mm(can be widened according to customer’s requirement ) |
|
Effective Tensile stroke |
800mm;1000mm;1200mm,(can be customized) |
|
Range of testing speed |
0.001~200mm/min ; 500mm/min (1000mm/min is option) |
|
Accuracy of displacement measurement |
Tolerance: ±0.5%/ tolerance: ±0.2% |
|
Deformation of measured system) |
Min span :10mm,Max range of deformation:800mm Extended deformation Min span: 25mm,50mm,100mm,range of deformation:5mm,10mm,25mm |
|
Accuracy of measured deformation |
Tolerance:±0.5％ (according to choose the larger or small deformation) |
|
Safety |
Electronic-limit protection |
|
Testing platform moving device |
Fast /slow two speeds to control,can jog |
|
Return back |
Manual or automatic operation.After the test, the moving iron return to initial position with the highest speed by manual or automatic operation |
|
Overload protection |
Overload 10％,automatic protection |
|

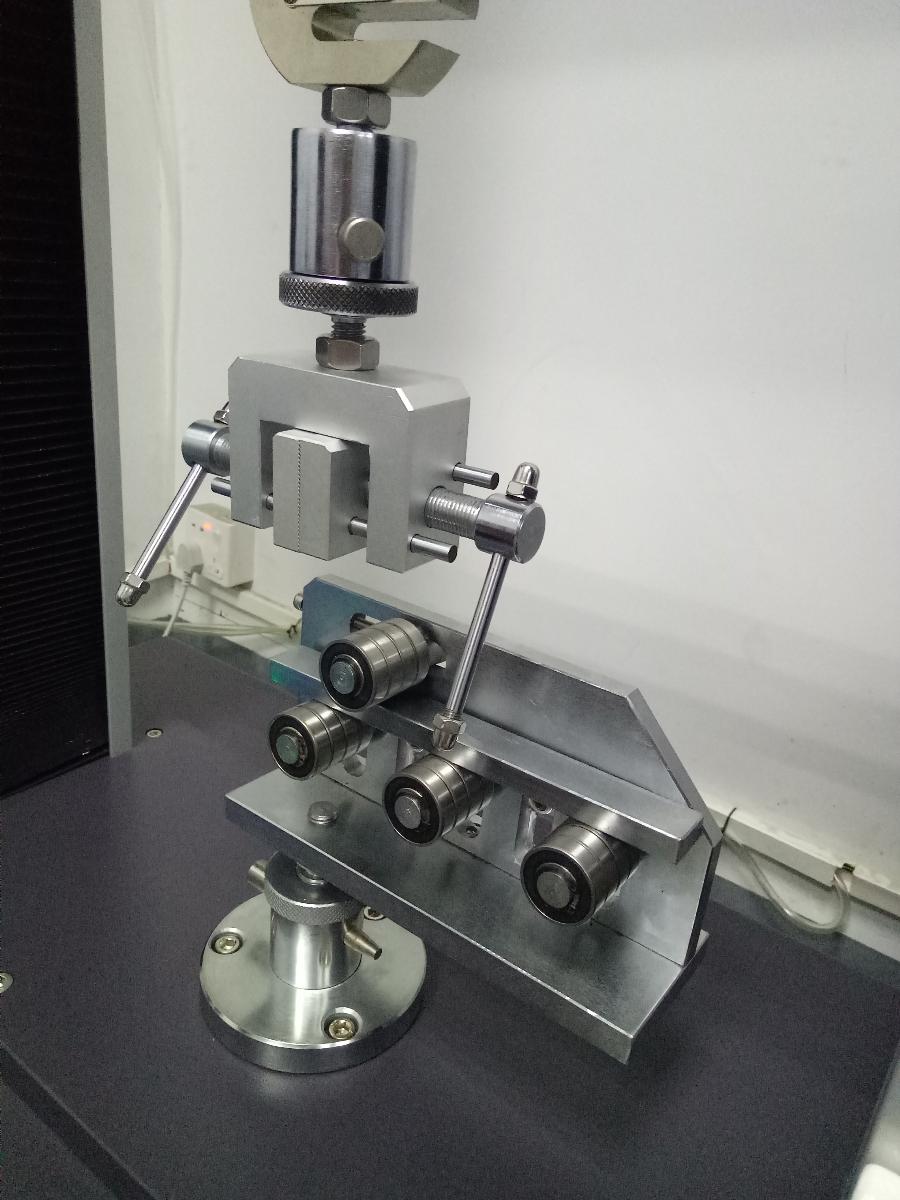

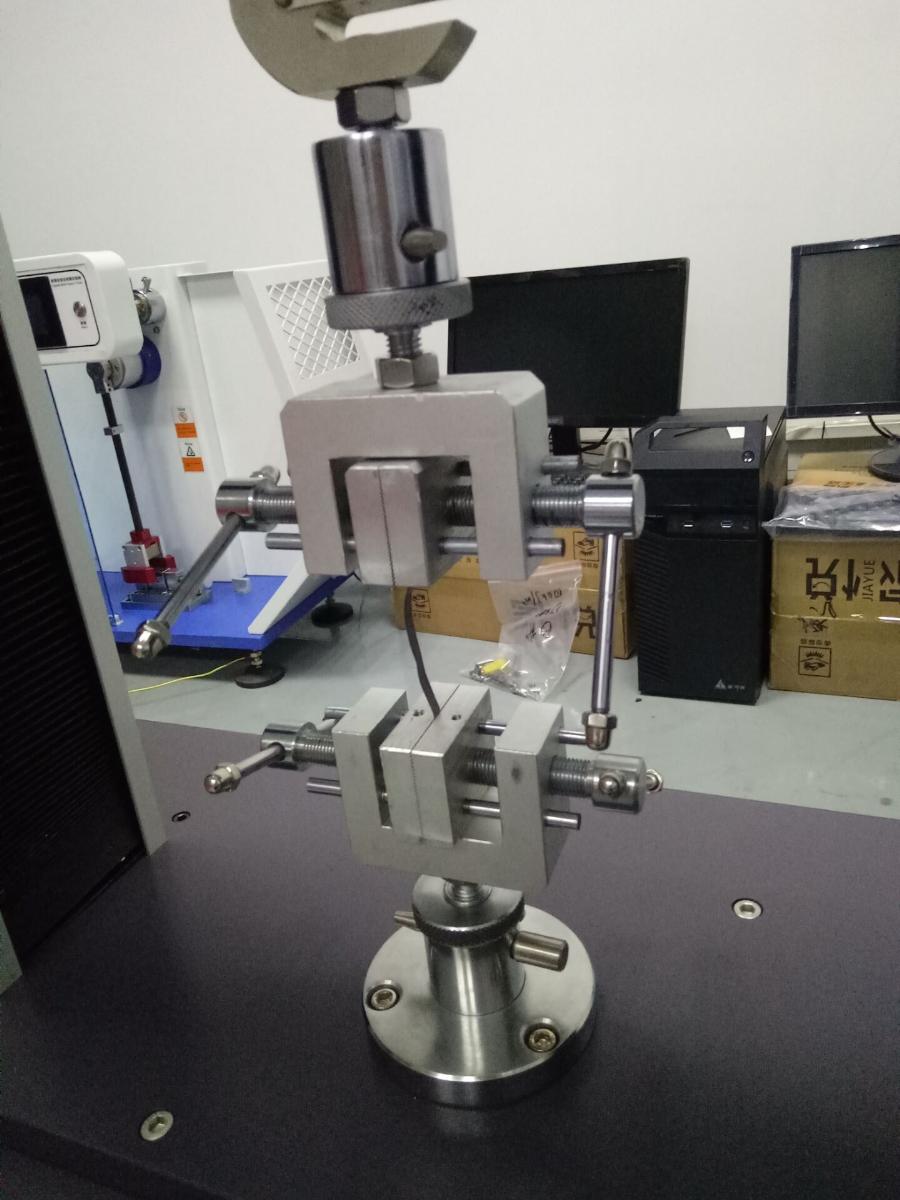

Fixture |
A set of tensile fixture |
|
Machine size |
80x55x220cm(length*width*height) |
|
Power system |
Panasonic AC Servo Motor + Driver + high-precision ball screw |
|
Power supply |
220V,50HZ |
|
Power |
0.4KW (depending on different demand of force, using different motor) |
Equipment Summary:

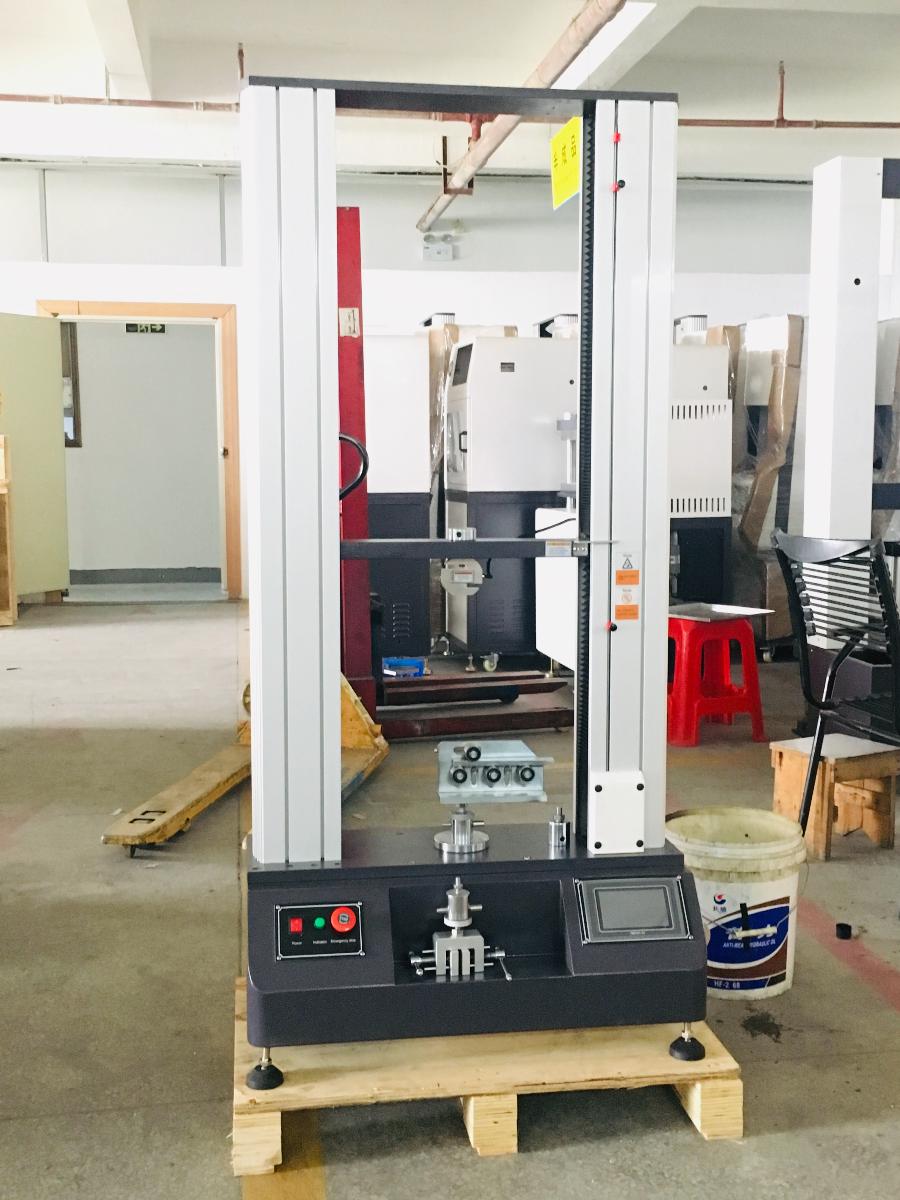

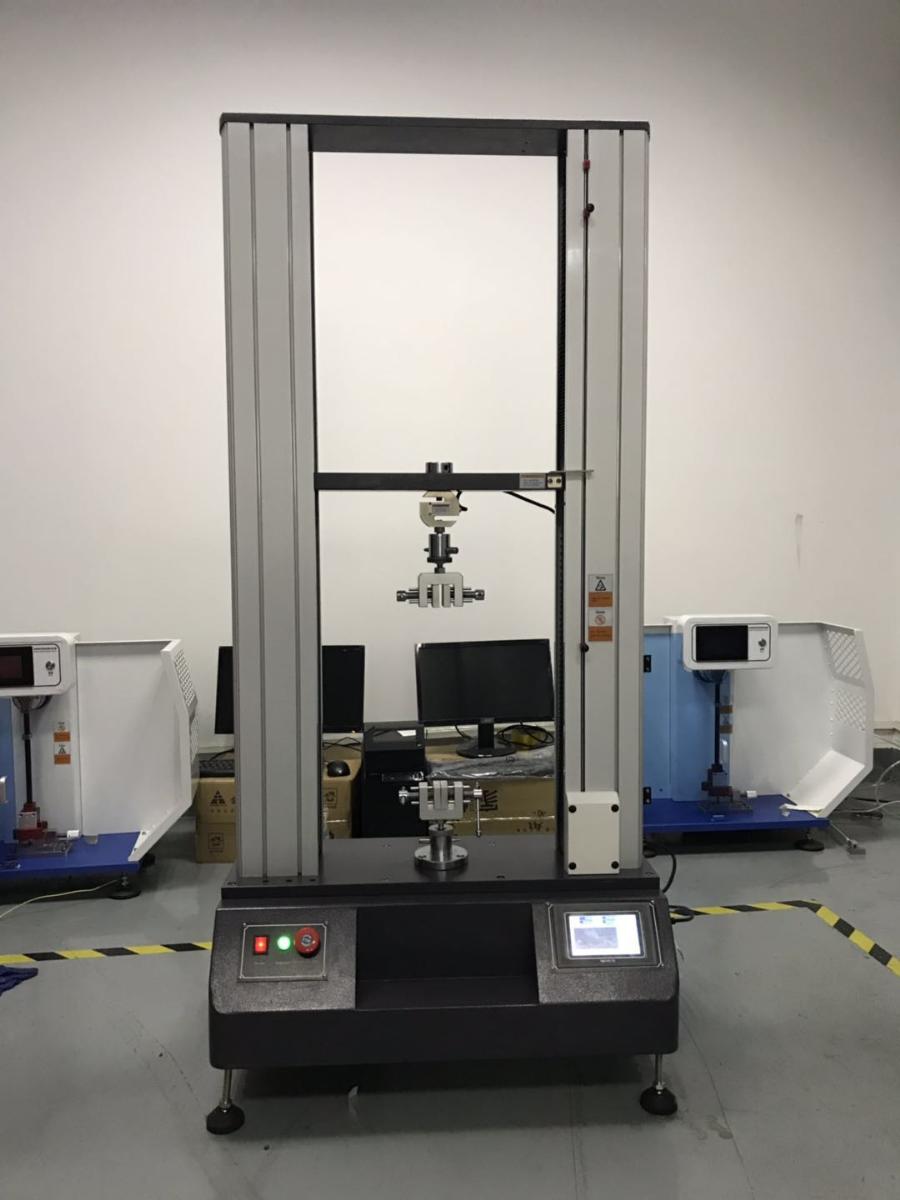

UTM-1004A 20KN Universal Testing Machine (touch screen) is a new material testing machine that combined with the electronic
technology and mechanical transmission, it has accurate load speed, range of force measurement, Has high accuracy and
sensitivity for the load, displacement measurement and control, it also can be tested the constant-velocity loading, constant-
velocity displacement. This machine is simple to operate, especially suitable for controlling quality in production line, This series
of machine is mainly applied to test the non-metallic and metallic materials which the load is less than 2ton.
Main Functions:
This test machine is applied to test the flexible material with large deformation.such as rubber, plastics, leather and others to
complete the test of tensile, tear, adhesive strength, peel and other tests, it is equipped with large deformative extensometer
which has the specialized terminology used in measurement of specimen, suitable for testing large deformation of materials.
Main Feature:
Adopted photoelectric encoder to measure the displacement, the controller uses the embedded single-chipmicrocomputer
structure with multi-functionsoftware,which combine with measurement,control,calculation and storage. It can automatic
calculate the stress, rate of elongation (need to add with extensometers),tensile strength, elastic modulus, automated statistical
results; automatically recorded the biggest point, breaking point, the designated point value or the rate of elongation; Using

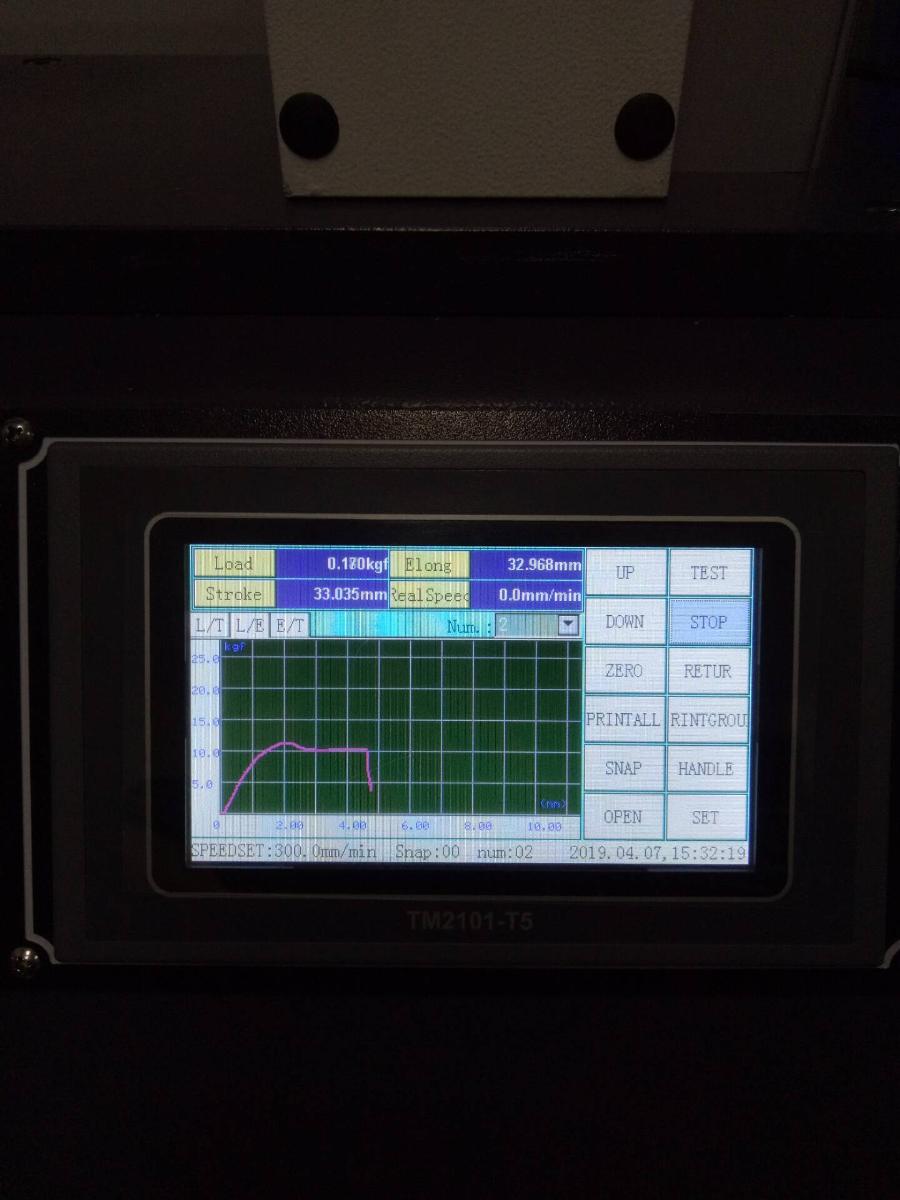

computer to display the dynamic curves in the testing process and process the data, After testing, it can re-analysis and

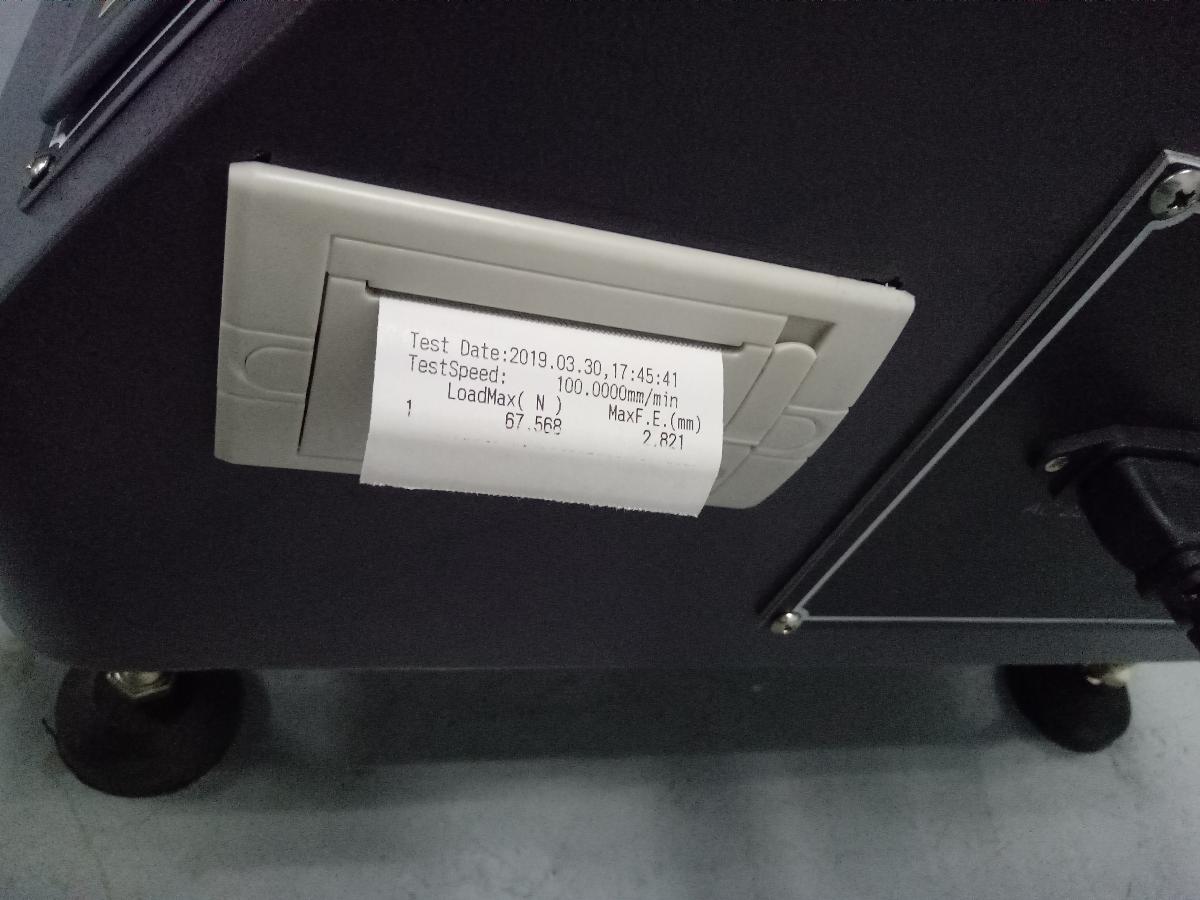

editing the data by amplifying the curves through the graphics processing module, printing reports, product performance
reached the international advanced level.
Corresponding Standard:
《GB/T16491-1996 electronic universal testing machine》
Applicable Industry:
It is widely used in wire and cable, hardware, electronic and electrical equipment, packaging, printing, medical equipment,
auto parts, textiles and leather, clothing, shoes, rubber and plastic products, colleges and universities; research laboratories;
inspection arbitration, technical supervision departments and many other industries, it is the basic equipment for quality
management and physical tested
