Product Detail
Technical Parameters:
|
Model |
UTM-1003A 5KN Touch Screen Universal Testing Machine |
|
Capacity |
1KN,2KN,5KN optional |
|
Accuracy of load measurement |
the load cell + HZ-2000 screen ± 0.5%(full range of 5% -100%) |
|
Units |
Kg,Lb,N,Ton (can be exchanged) |
|
Resolution |
1 / 50000 |
|
Displacement resolution |
0.001mm |
|
Power system |
AC motor,deceleration device |
|
Control system |
testing speed 50~300 mm/min with step less speed and 5 fixed-speed (50,100,200,250,300) or the needs of customer |
|
Data sampling frequency |
200times/sec |
|
Effective testing width |
120cm (can be widened according to customers' requirement) |
|
Safety devices |
overload, emergency stop devices, limited devices of displacement, leak current protection device |
|
Power |
400W (depending on different demand of force using different motor) |
|
Machine size |
60x75x180cm (length * width * height) |
|
Weight |
120kg |
|
Power supply |
AC 220V single-phase |
Equipment Summary:
UTM-1003A 5KN Touch Screen Universal Testing Machine is a new material testing machine that
combined with the electronic technology and mechanical transmission, it has accurate load speed,
range of force measurement, Has high accuracy and sensitivity for the load, displacement measurement
and control, This machine is simple to operate, simple structure, it can be directly placed on the testing
table for test, especially suitable for controlling quality in production line This series of machine is mainly
applied to test the non-metallic and metallic materials which the load is less than 5KN
Main Functions:

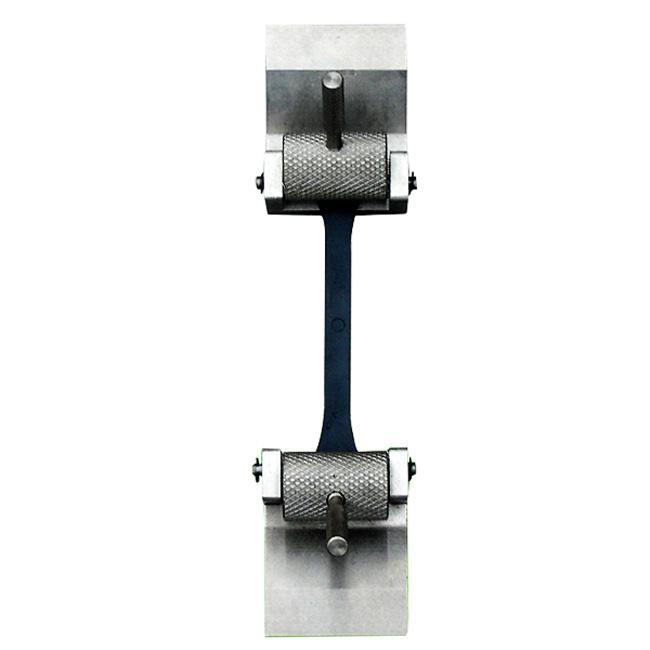

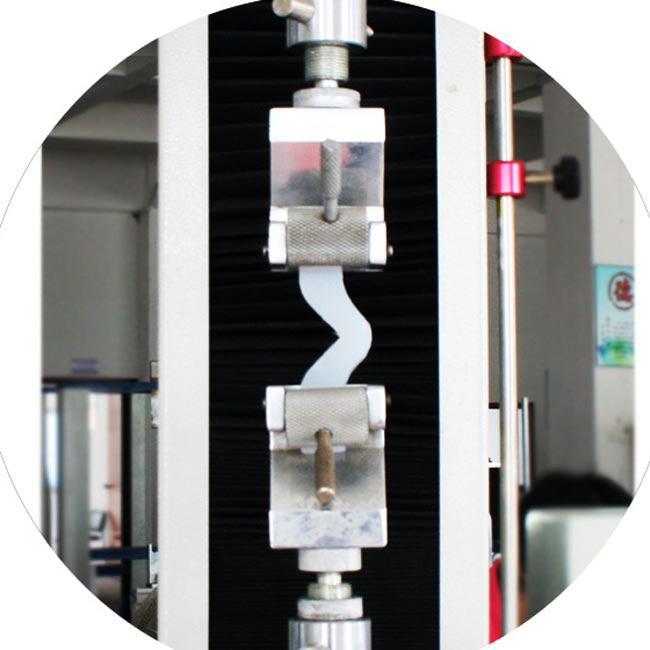

This machine can be test all the material in tensile, compression, bending, shear, peel, tear, two-point
extended (need add extensometer) and others for control products quality. Such as textile, rubber, plastics,
synthetic leather, tape,adhesive, plastic film, composite materials, electronics, metals and other materials.
Main Feature:
1. The surface of appearance using electrostatic spray,simple and generous, multi-functions and economy.
2. Digital force displayed by touch screen controller, discernible tension or pressure.
3. Three kinds of units: N,Kg,Lb, option or automatically exchange;
4. LCD with backlight can be used in low-light environments
5. Single measurement, it can record the max force of tension and compression in both directions,automatic
or manual cleared to zero.
6. The system would shut down if overload or over-trip
7. Structure of single-column is beautiful, sophisticated and economy.
Corresponding Standard:
GB/T16491-1996 electronic universal testing machine
Applicable Industry:
It is widely used in wire and cable, hardware, electronic and electrical equipment, packaging, printing,
medical equipment, auto parts, textiles and leather, clothing, shoes, rubber and plastic products, colleges
and universities;research laboratories; inspection arbitration, technical supervision departments and many
other industries, it is the basic equipment for quality management and physical tested.
