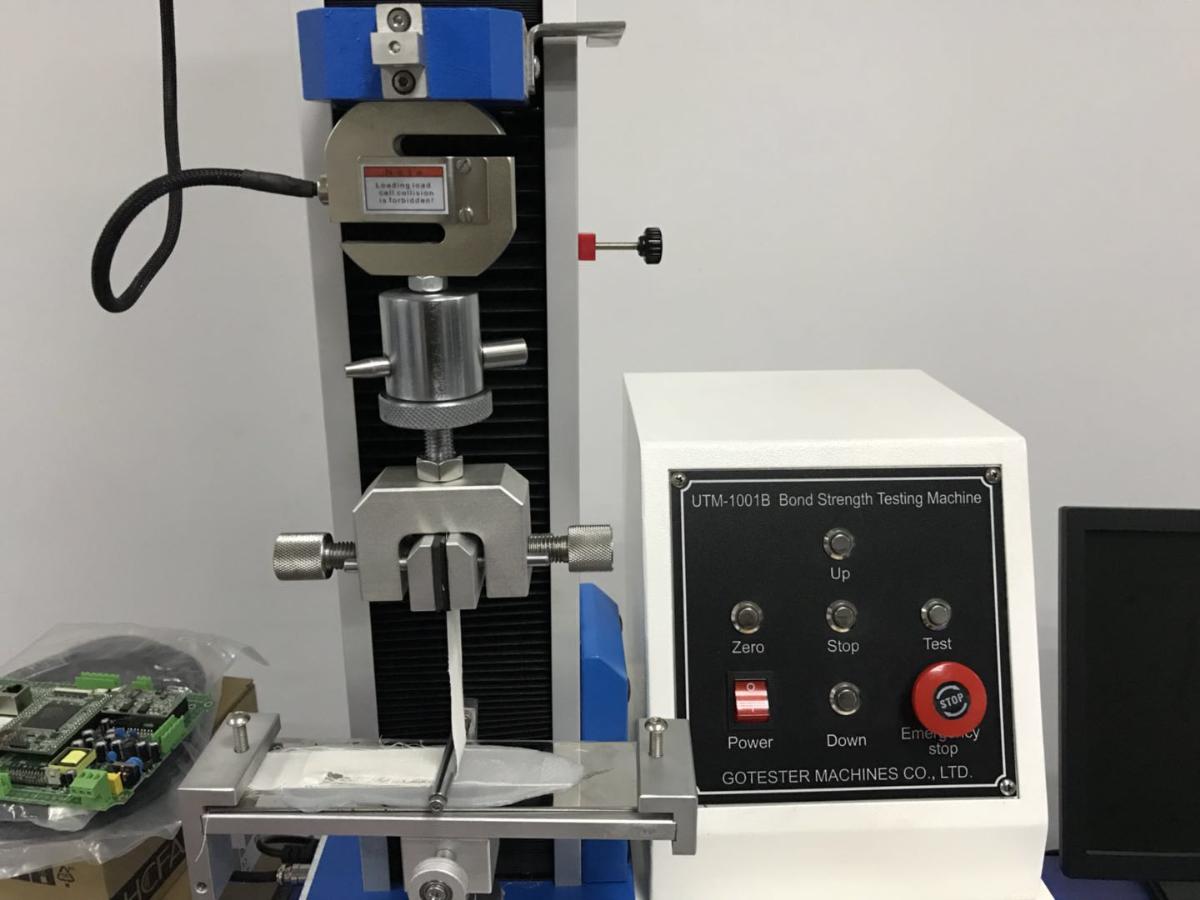

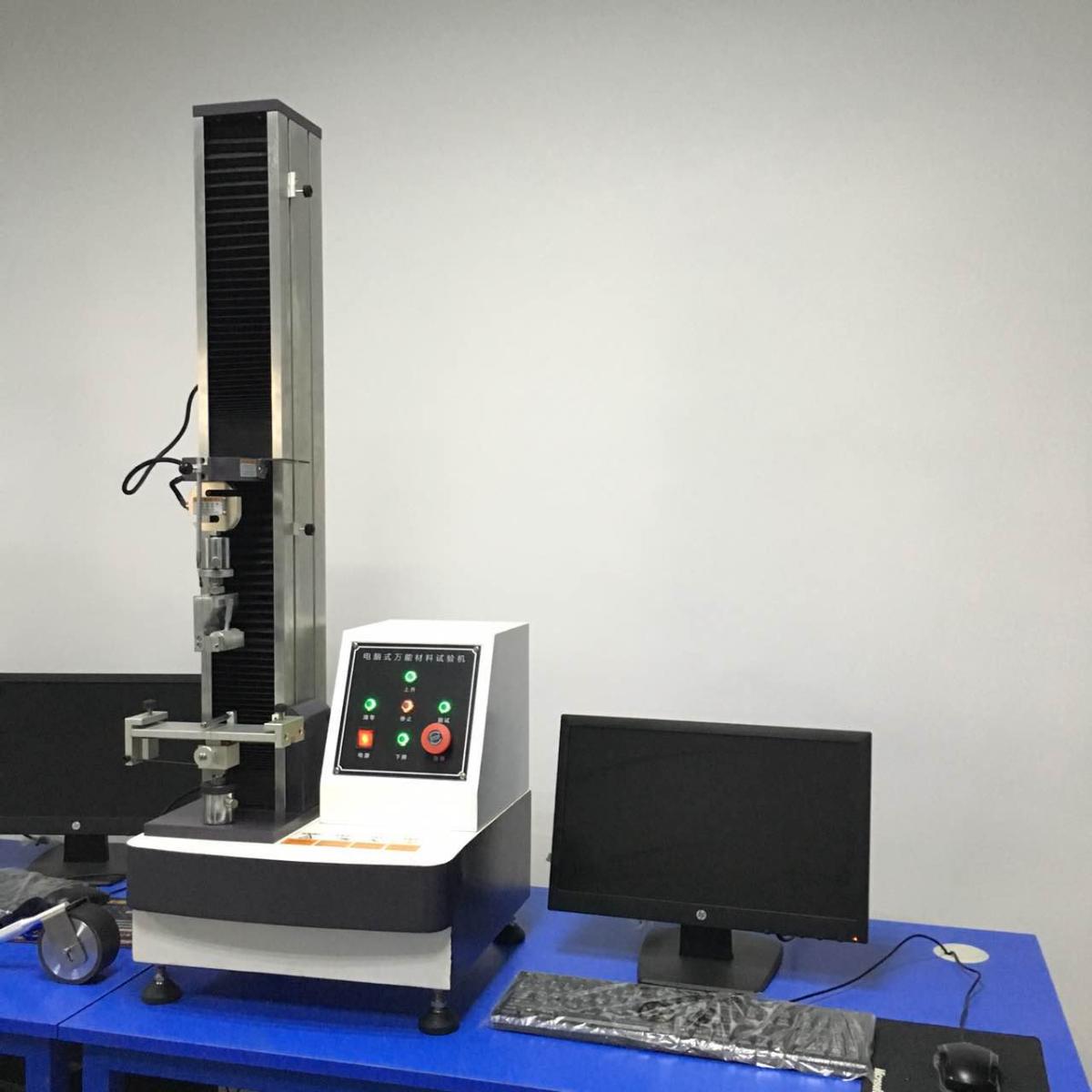

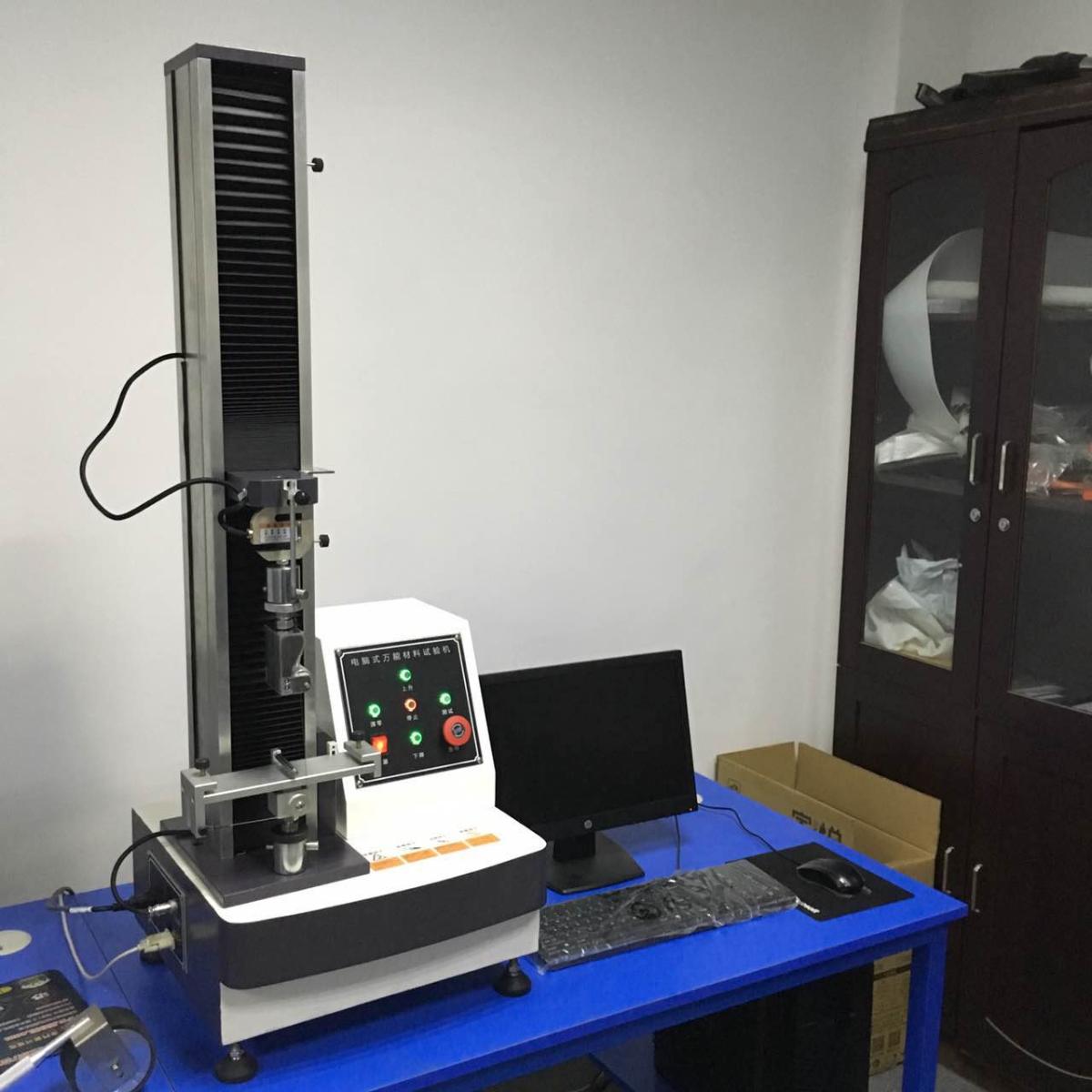

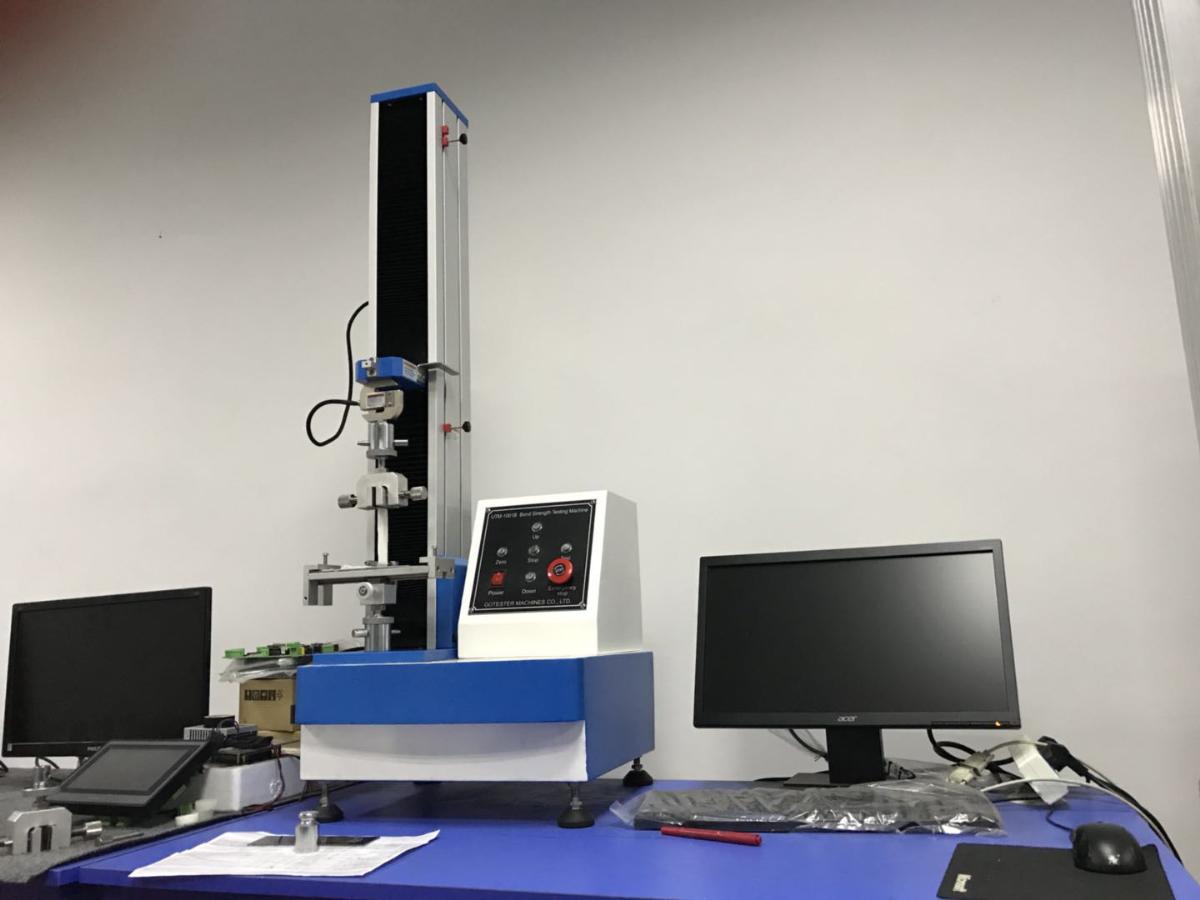

UTM-1002B 2KN Computer Servo Universal Testing Machine

Technical Parameter:

Equipment Summary:
UTM-1002B 2KN Computer Servo Universal Testing Machine is a new material testing machine that combined with the electronic

technology and mechanical transmission, it has accurate load speed, range of force measurement,Has high accuracy and sensitivity

for the load, displacement measurement and control.   This series of machine using single-space structure, operational space at the

bottom,it is mainlyapplied to test non-metallic and metallic material ,which the load is less than 2kN , it has the parameters, such as

stress,strain, control mode of displacement ,calculated max force, tensile strength, bending strength, compressive strength, elastic

modulus, rate of elongation, yield strength and others.


Main Function:
This machine can be applied to test lots of materials in tension, compression, tear, peel (can 90 degrees and 180 degrees) and other

mechanical test, such as rubber, tires, belt, shoes, plastic, film, acrylic,FRP,ABS,EVA,PU,aluminum-plastic pipe,composite materials,

waterproof materials,fibers,textiles,wire and cable,paper,gold foil,ribbons,thread,spring,wood,medicine packaging materials,tapes etc.

Main Features:
1. Adopt  Panasonic servo motor,the beam moves up and down to test the load through the transmission.
2. The whole control system is safe and high reliability.
3. Microcomputer control the whole testing process, real-time dynamic display the load values, displacement values, deformation,

testing speed and testing curves.
4. Microcomputer for data processing and  analysis, testing results can be saved automatically, testing curves can be transferred

out after the test, you can know the testing process through the testing curves, or compare with others curves, or amplify the curves.
5. the testing software of the Window, with strong processed capabilities of data and graphics, it can immediate print out a complete

testing report and testing curves.

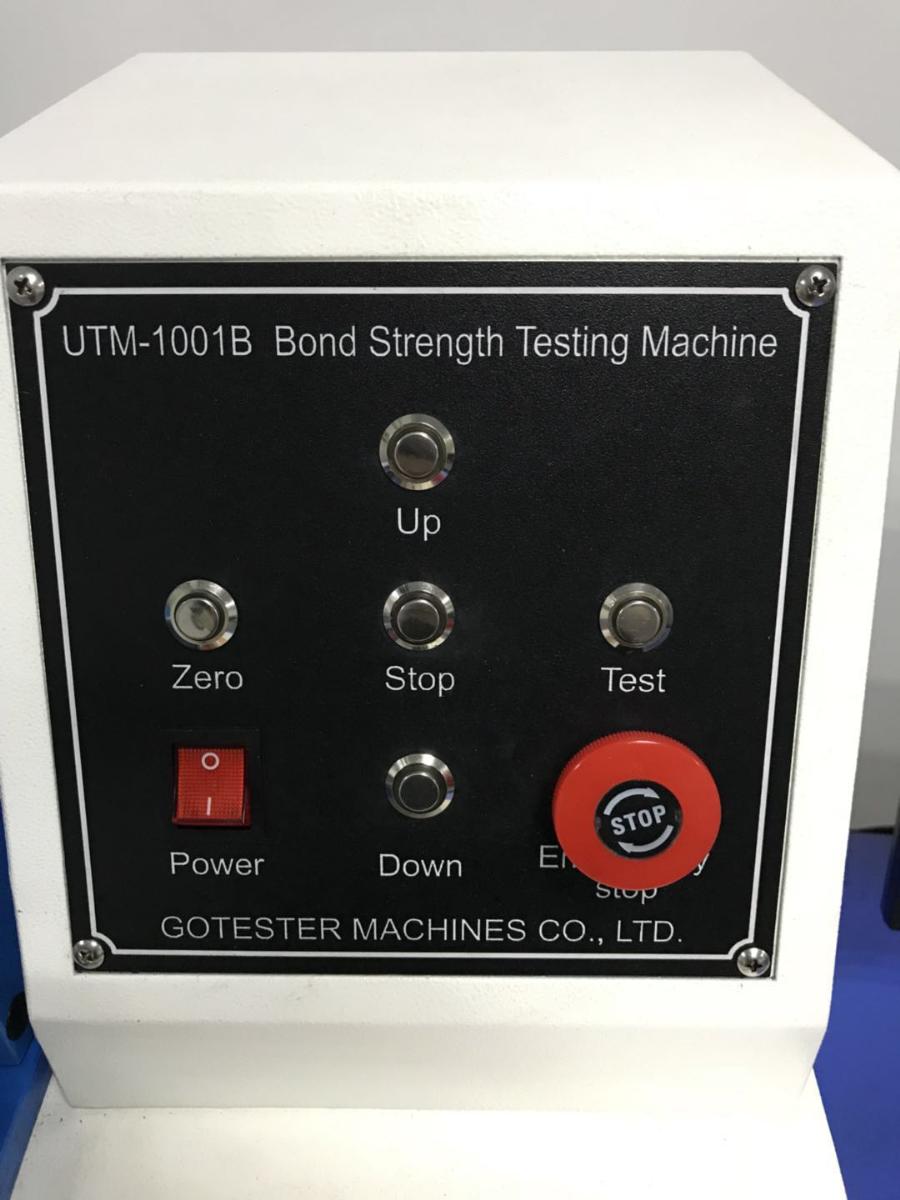

6. Has limit protection, overload protection, emergency stop and other safe protective functions.

Applicable Industry:
It is widely used in wire and cable, hardware, electronic and electrical equipment, packaging, printing, medical equipment, auto parts,

textiles and leather, clothing, shoes, rubber and plastic products, colleges and universities; research laboratories; inspection arbitration,

technical supervision departments and many other industries, it is the basic equipment for quality management and physical tested..

Testing Reference:
