Product Detail
Technical Parameter:
|
Model |
UTM-1003B 5KN Computer Servo Universal Material Testing Machine |
|
Max load |
100N, 200N, 500N, 1KN, 2KN, 5KN, option |
|
Accurate grade |
1grade /0.5 grade |
|
Effective measuring range |
Force from 0.2% to 100% (1grade) / from 0.4% to 100% (0.5 grade) |
|
Measuring accuracy |
the value ±1% / the value±0.5% |
|
Tester resolution |
Max load 1/200000,constant the resolution |
|
Load sensor |
Basic configuration sensor max load: one |
|
Effective testing width |
400mm (can be increased the width according to customers requirement) |
|
Effective tensile stroke |
400, 500, 600mm (can be customized) |
|
Testing speed |
From 0.001 to 500mm/min |
|
Accuracy of displacement measurement |
Tolerance: ±0.5% / tolerance: ±0.2% |
|
Deformation of measured system
|
Min span: 10mm, Max range of deformation 800mmExtended deformation span: 25mm, 50mm, 100mm,range of deformation 5mm, 10mm, 25mm |
|
Accuracy of measured deformation |
Tolerance :±0.5% |
Equipment Summary:

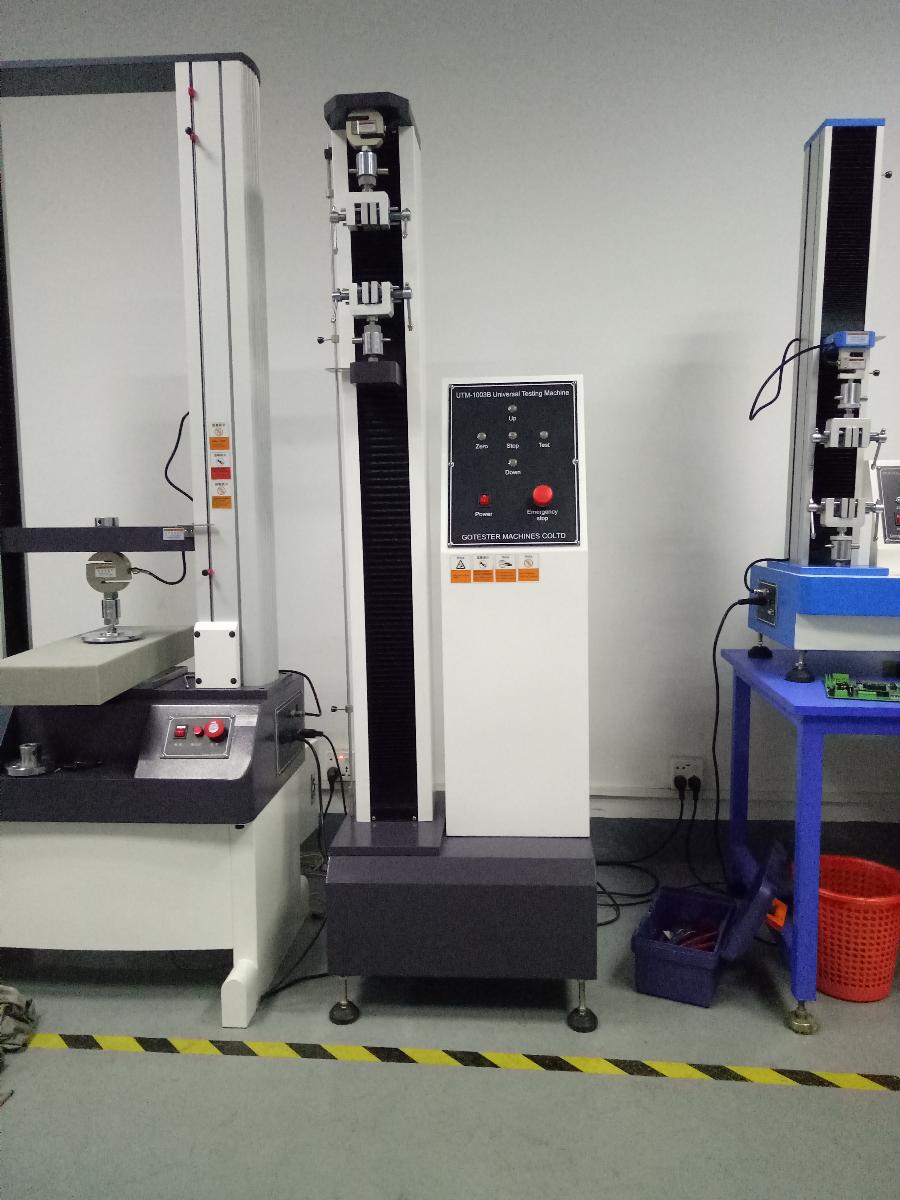

5KN Computer Servo Universal Material Testing Machine is a new material testing machine that combined with the electronic
technology and mechanical transmission, it has accurate load speed, range of force measurement, Has high accuracy and
sensitivity for the load, displacement measurement and control.

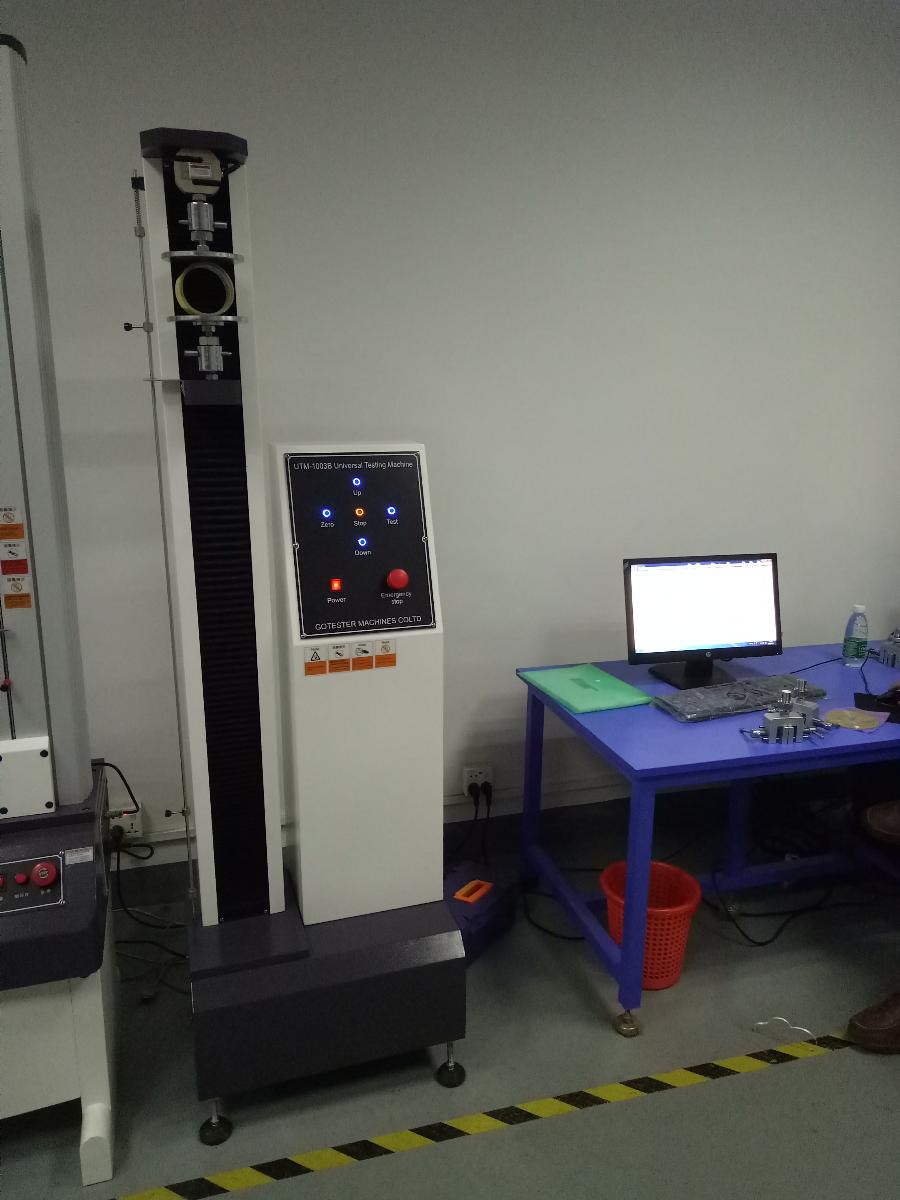

This machine is simple to operate, simple structure, it can be directly placed on the testing table for test, especially suitable
for controlling quality in production line This series of machine is mainly applied to test the non-metallic and metallic materials
which the load is less than 5KN
Main Functions:

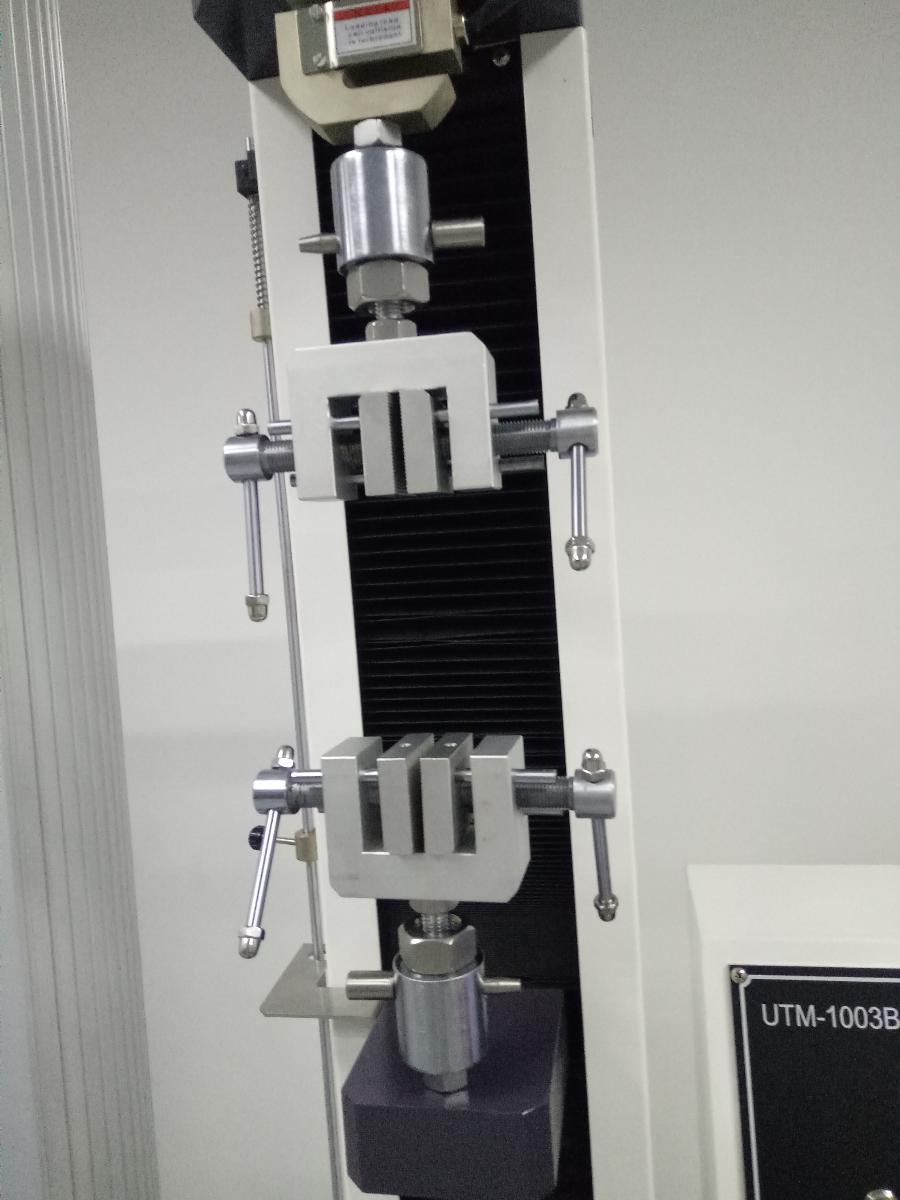

This machine can be test all the material in tensile, compression, bending, shear, peel, tear, two-point extended (need add
extensometer) and others for control products quality. Such as textile, rubber, plastics, synthetic leather, tape, adhesive,
plastic film, composite materials, electronics, metals and other materials.
Main Feature:
1. The surface of appearance using electrostatic spray, simple and generous, multi-functions and economy.

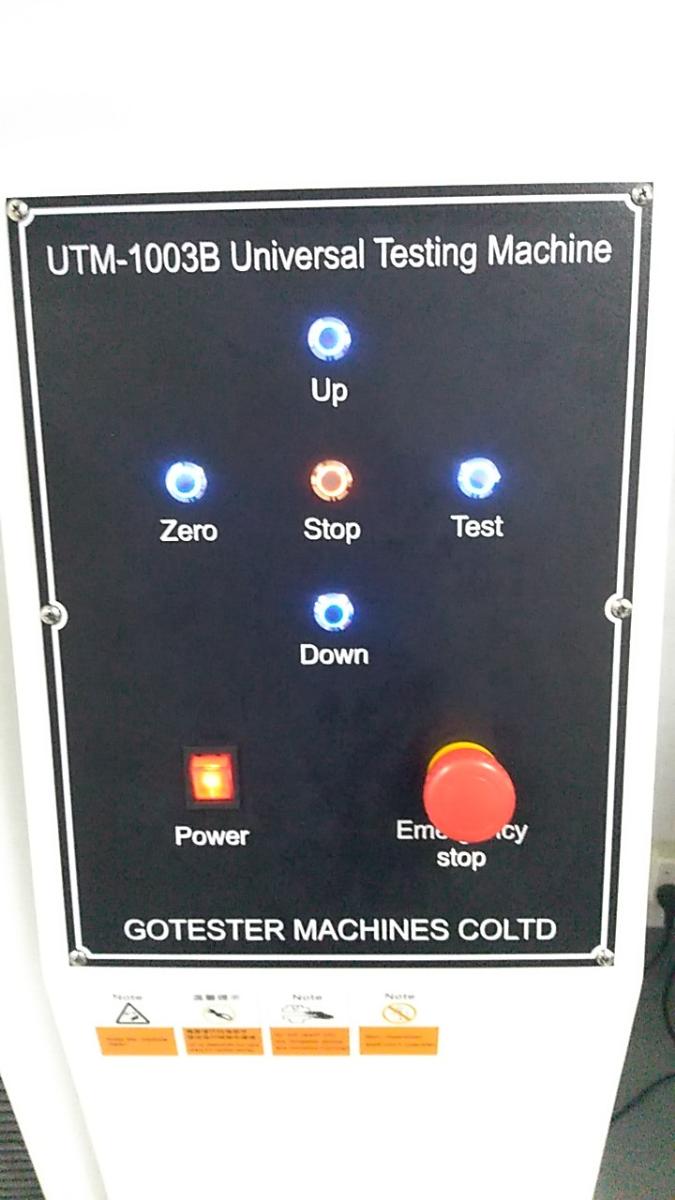

2. Digital force displayed by LCD , discernible tension or pressure, LCD display clearly
3. Three kinds of units: N,Kg,Lb, option or automatically exchange;
4. LCD with backlight can be used in low-light environments
5. Single measurement,it can records the max. force of tension and compression in both directions,automatic or manual cleared to zero.
6. The system would shut down if overload or over-trip.
7. Structure of single-column is beautiful, sophisticated and economy.
Corresponding Standard:
GB/T16491-1996 electronic universal testing machine
Applicable Industry:
It is widely used in wire and cable, hardware, electronic and electrical equipment, packaging, printing, medical equipment, auto parts,
textiles and leather, clothing, shoes, rubber and plastic products, colleges and universities; research laboratories;inspection arbitration,
technical supervision departments and many other industries, it is the basic equipment for quality management and physical tested.
