Product Detail
Technical Parameter:
|
Model |
UTM-1001B 1KN Computer Servo Press Button Resilience Testing Machine |
|
Maximum load |
1KN |
|
Capacity choice |
200N, 500N, 1KN or less than can be self-selected |
|
Unit |
KG,N,LB, TON can be exchanged. |
|
Measurement system |
Load cell + HZ-2000 |
|
Accuracy load of measurement |
the load cell + HZ-2000 screen ± 0.5% (full range of 5% -100%) |
|
Resolution |
1 / 50000 |
|
Maximum test stoke |
About 500mm ( can be customized ) |
|
Test speed |
50-300mm / min with stepless speed and 5 fixed-speed (can be customized ) |
|
Data sampling frequency |
200times/sec |
|
Machine with thermal printers can automatically output the testing results. |
|
|
Can store 10 testing results and auto-calculate its average, auto-grab maximum force and the force at break. |
|
|
Display |
Computer display |
|
Machine size |
45x58x135cm (length*width*height) |
|
Weight |
75KG |
|
Ratio of Breakpoint |
from 0 ~ 99%, which the user can set according to different materials to stop the machine, realizing stop machine at any position. |
|
Safety |
The system would shut down if overload or over-trip. |
|
Shape |
column shell is made of aluminum material. |
|
Power system |
AC Motor |
|
Power |
120W(depending on different demand of force using different motor) |
Equipment Summary:

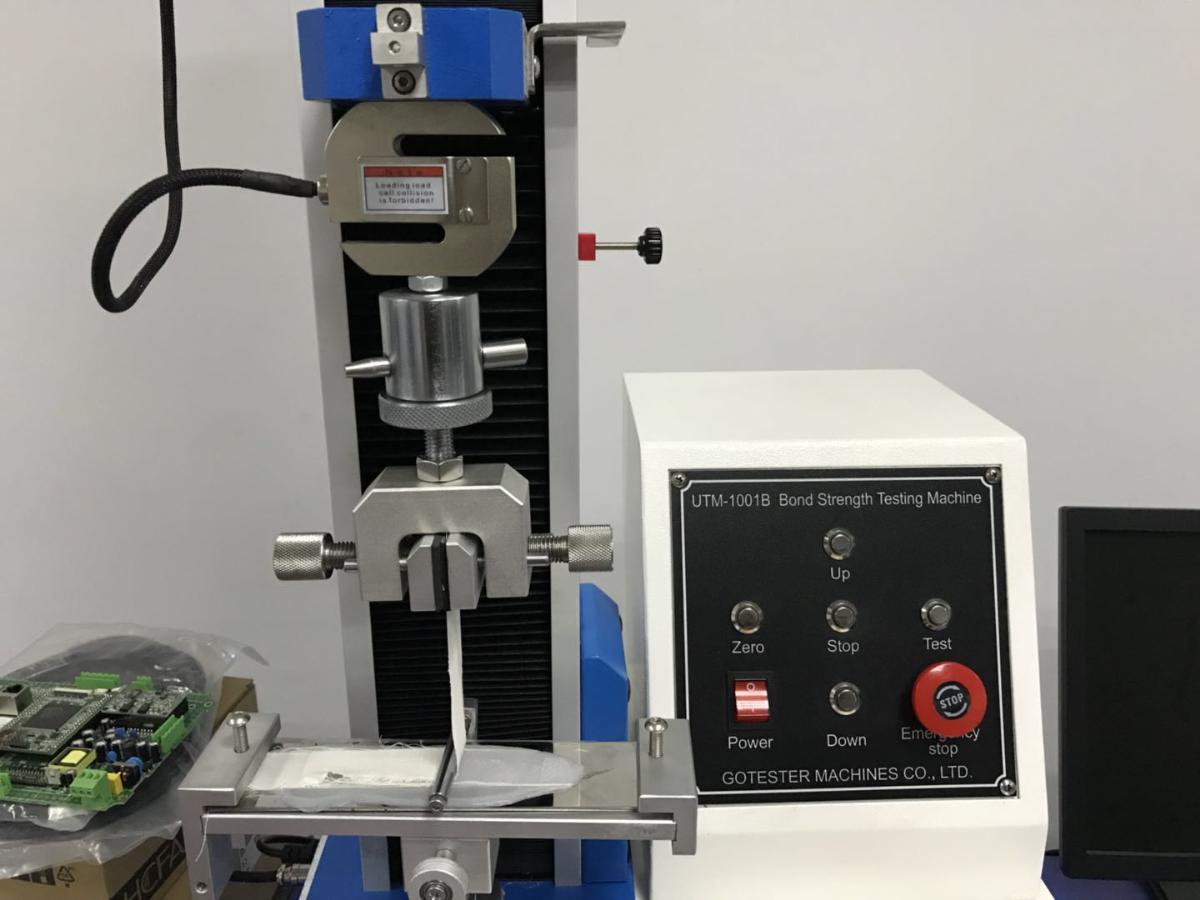

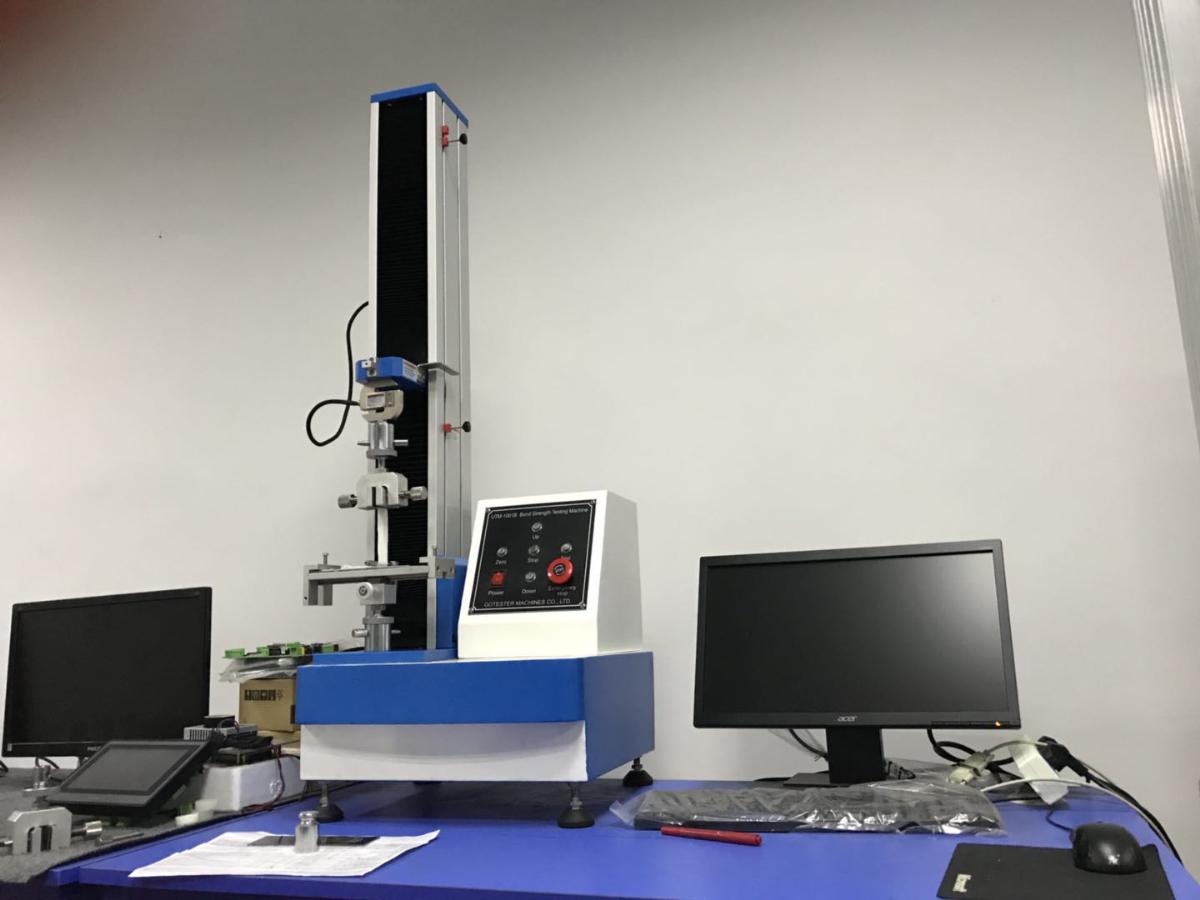

UTM-1001B 1KN Computer Servo Press Button Resilience Testing Machine a simple type machine, simple structure, convenient
operation, It can be tested on the operated table, Using the electronic control systems, load sensor is rising and falling to test the
tension or compression through the motor rotation, transmission machinery and T-screws. This machine is simple to operate,
especially suitable for controlling quality in production line, This series of machine is mainly applied to test the non-metallic and
metallic materials which the load is less than 1KN.
Main Functions:
This machine can be test all the material in tensile, compression, bending, shear, peel, tear, two-point extended (need add
extensometer) and others for control products quality. Such as textile,rubber,plastics,synthetic leather,tape,adhesive,plastic film,
composite materials, electronics, metals and other materials.
Main Feature:
1. Excellent design. my company has focused on product appearance over the years, company has developed many products
that is similar with the foreign products, the surface of product is made of aluminum and process by electrostatic spray
2. Digital force displayed by LCD , discernible tension or pressure, LCD display clearly
3. Three kinds of units: N ,Kg ,Lb ,ton option or automatically exchange;
4. LCD with backlight can be used in low-light environments
5. Single measurement,it can record the max force of tension and compression in both directions,automatic or manual cleared to zero.
6.The system would shut down if overload or over-trip

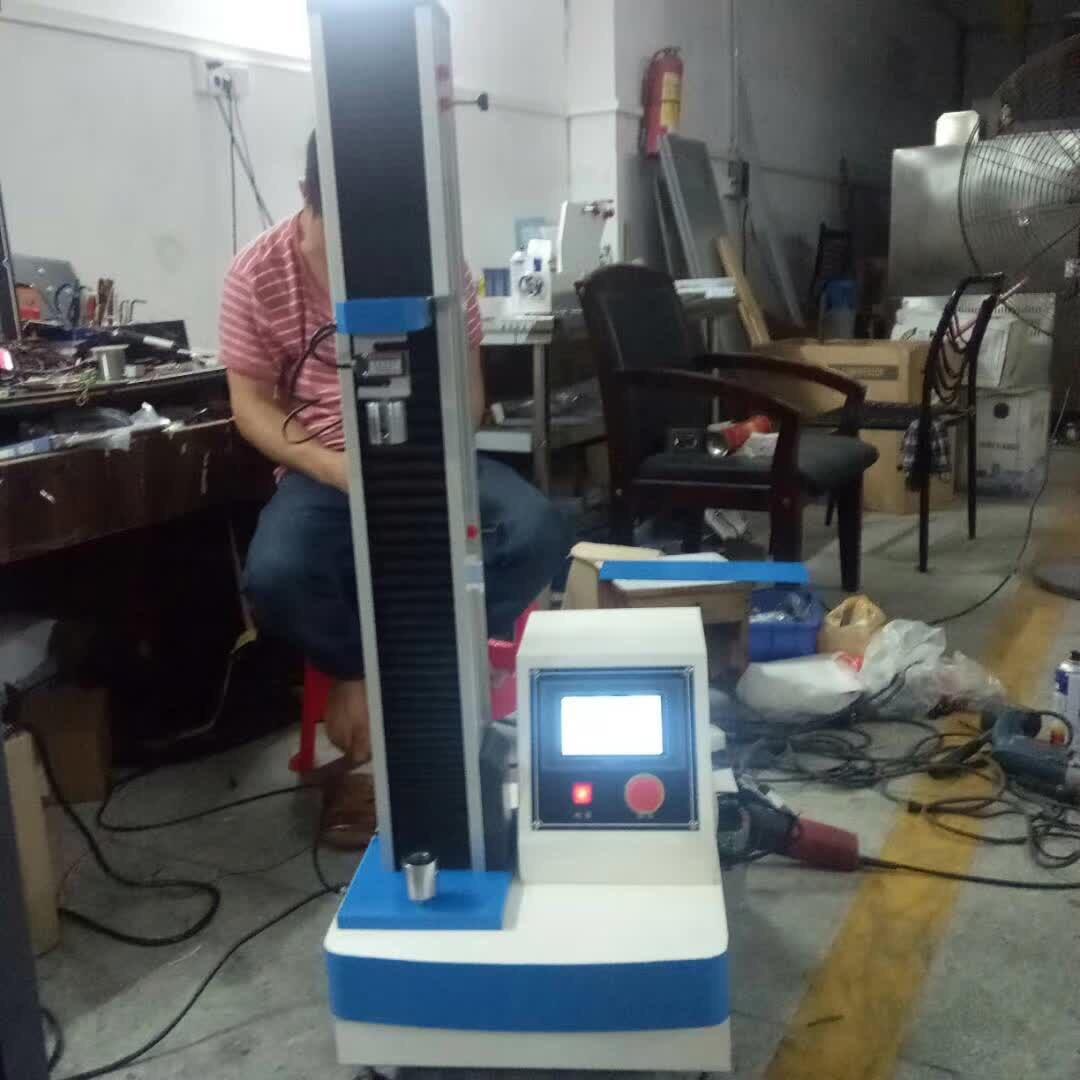

7. Structure of single-column is beautiful and sophisticated, seating operation, relaxation and nature.
Corresponding Standard:
《GB/T16491-1996 electronic universal testing machine》
Applicable Industry：
It is widely used in wire and cable, hardware, electronic and electrical equipment, packaging, printing, medical equipment,
auto parts, textiles and leather, clothing, shoes, rubber and plastic products, colleges and universities; research laboratories;
inspection arbitration, technical supervision departments and many other industries, it is the basic equipment for quality
management and physical tested.
